Ford Interceptor Utility police Vehicle specific Angled console
Product Description

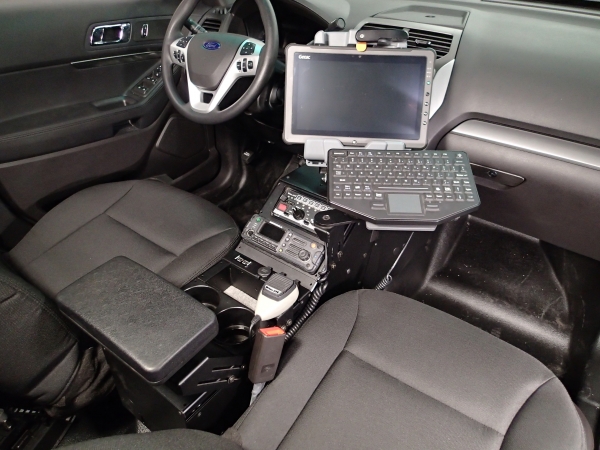

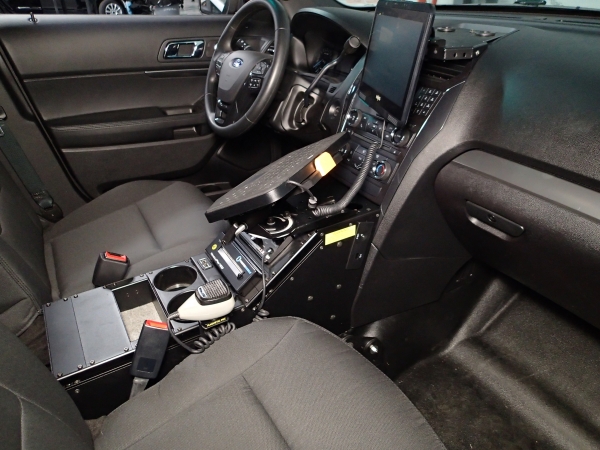

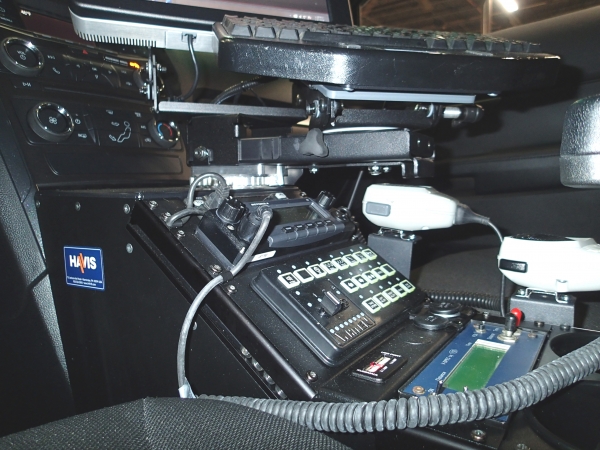

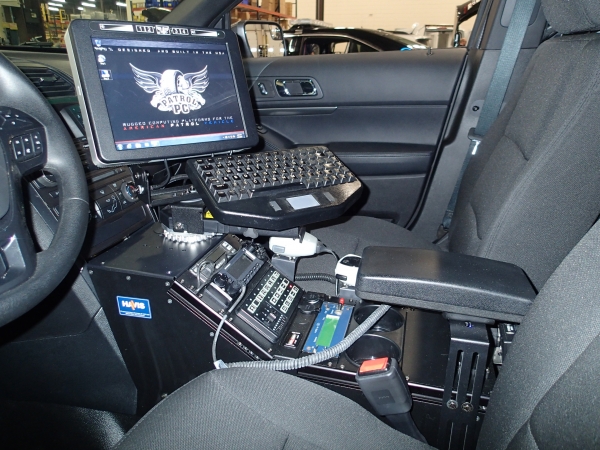

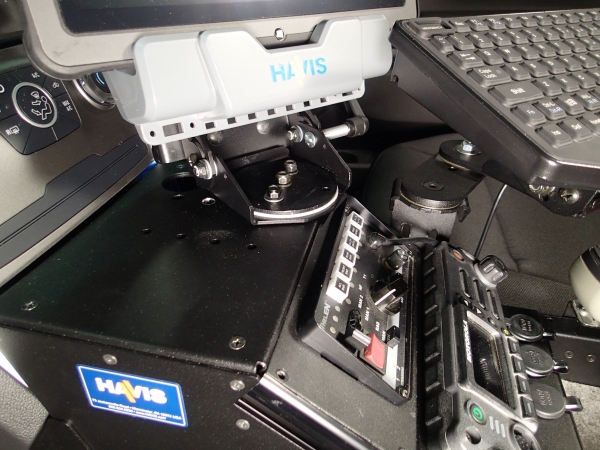

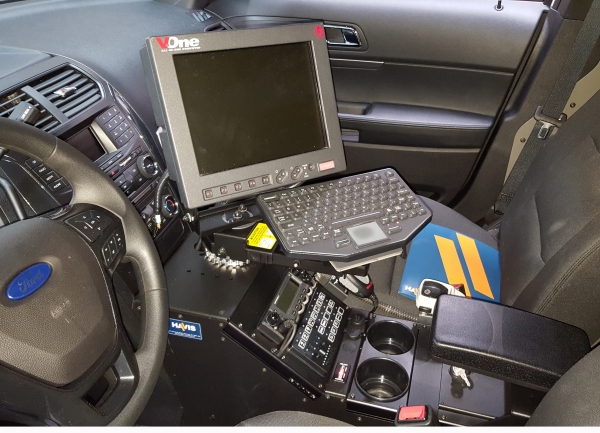

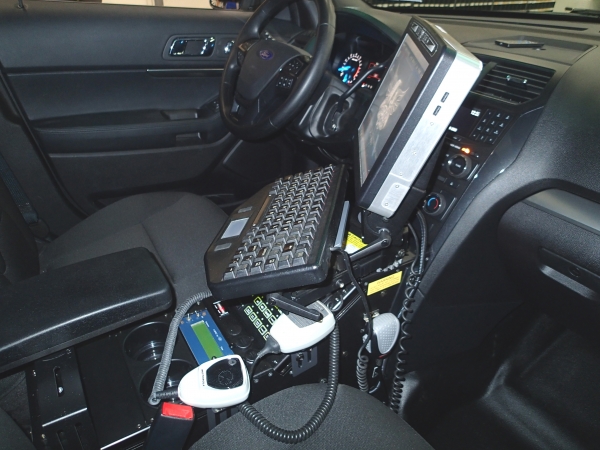

Vehicle specific angled console for 2013-2018 Ford Interceptor standard utility police vehicle

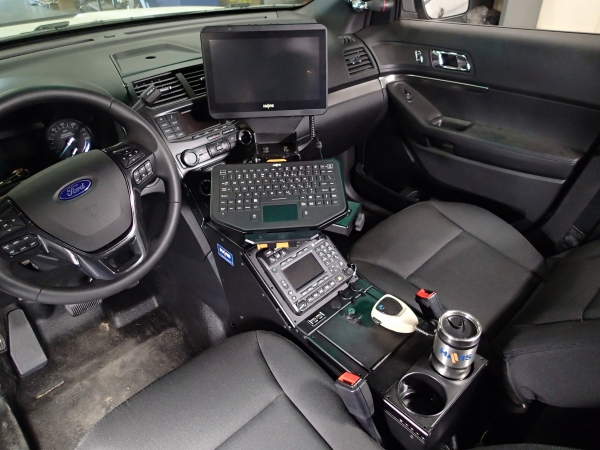

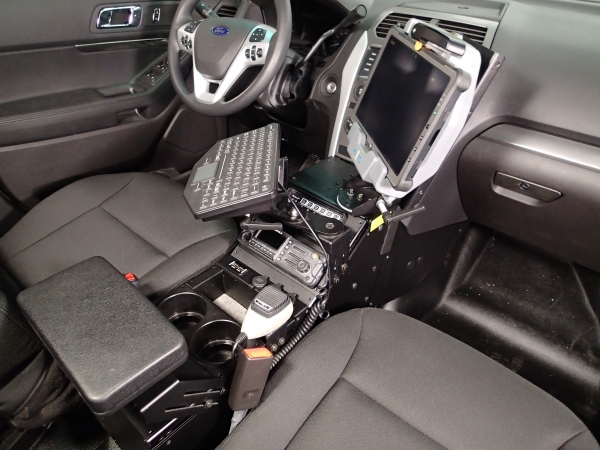

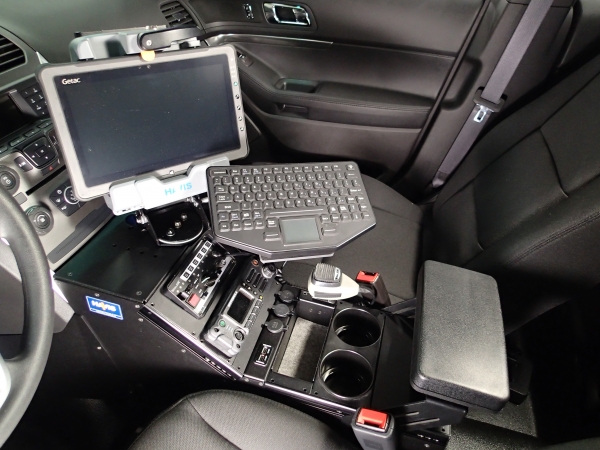

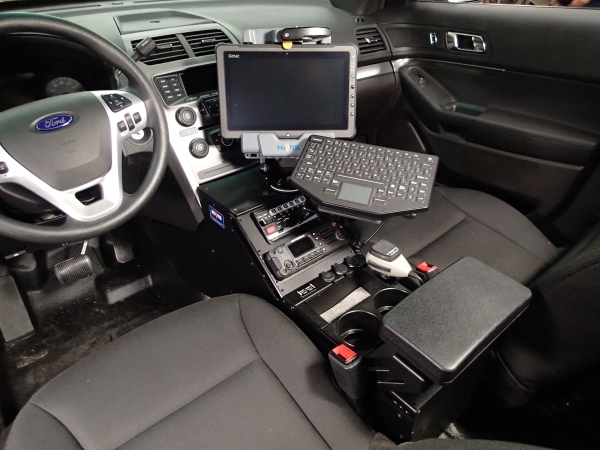

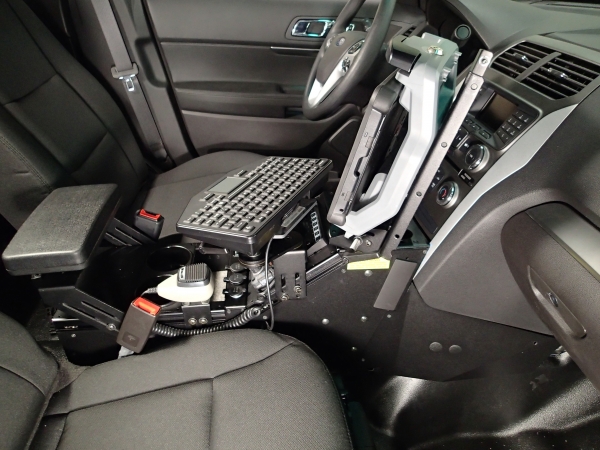

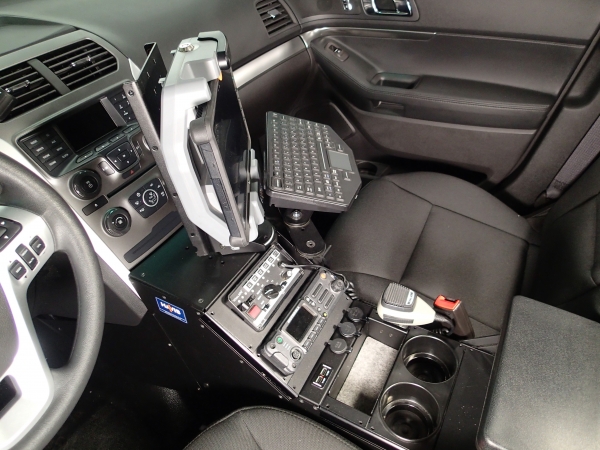

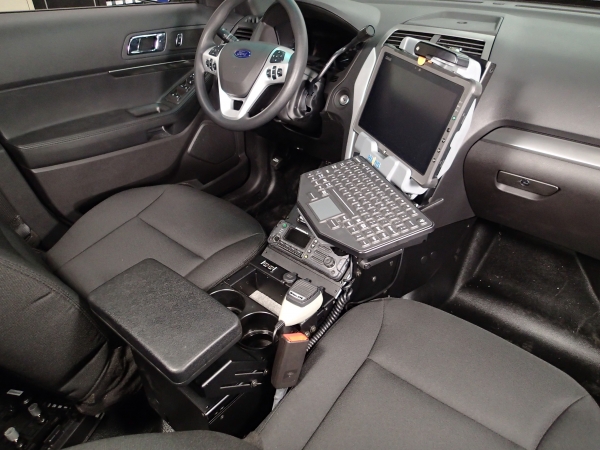

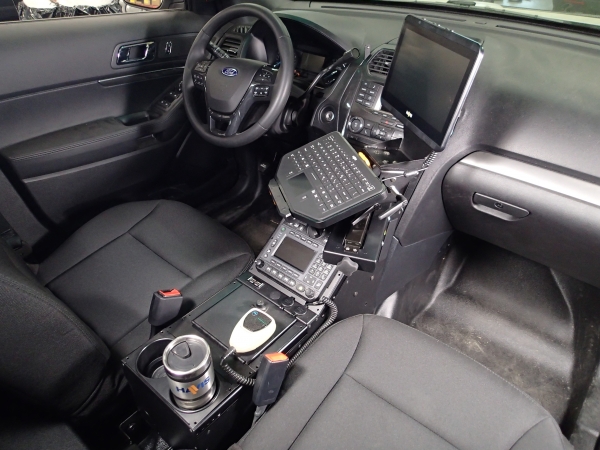

Gallery
Product Features
- Vehicle specific angled console for 2013-2018 Ford Interceptor standard utility police vehicle
- Also fits 2013-2018 Ford Interceptor Utility with optional interior upgrade package code 65U (must buy CM007650 trim panels and installer must make minor modification. see instructions for details)
- Mounts between seats and fits lower dash contour
- OEM tunnel plate must be removed
- Provides internal mounting for 20″ of equipment, 8″ in the front angled section, 12″ in rear horizontal section
- 12″ long removable forward trim panels available as an option CM007650
- See side view drawing min/max for mounting depth allowed for control heads and/or options
- Includes cutout for OEM aux input plugs or cover plate
- Includes two (2) additional 12 volt sockets with wire and fuse and an additional cutout for another 12 volt socket
- Includes additional cutout for rocker switch C-SW-1,2,3,4 (sold separately) or dual USB charge module C-USB-2 (sold separately)
- Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
- Has mounting holes for C-HDM-204 or 214 side mount poles (sold separately)
- Has mounting holes for C-HDM-300, C-MD-100 Series and C-MD-200 Series (all sold separately)
- Accepts most standard accessories (sold separately)
- Mounting kit included
- Includes cutout and adaptor plate for relocation of OEM USB / MP3 aux panel into the side of the console

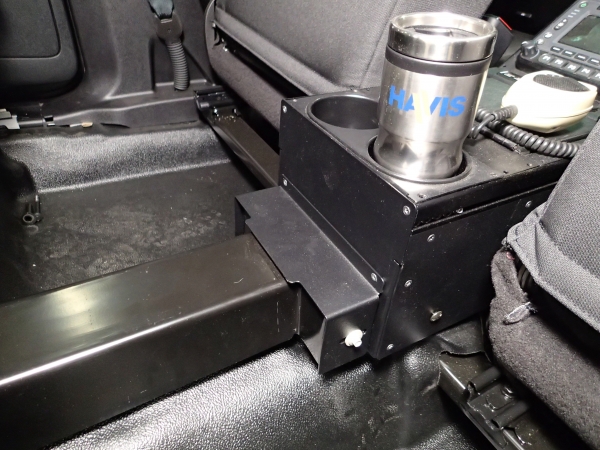

- Includes adapter cover for OEM rear conduit
Specifications
- Vehicle mounting kit included
- Works with dash monitor mount C-DMM-123 only if nothing is mounted on top of the console
- Recommended side mounted keyboard parts are CM006336, C-MD-204 and C-KBM-100 Series
- Cannot be used with Integrated Control System
- Gross Weight: 30.00 lbs
