Havis Tahoe Police 15″ Console

Tahoe Police Vehicle Specific 15

Product Description

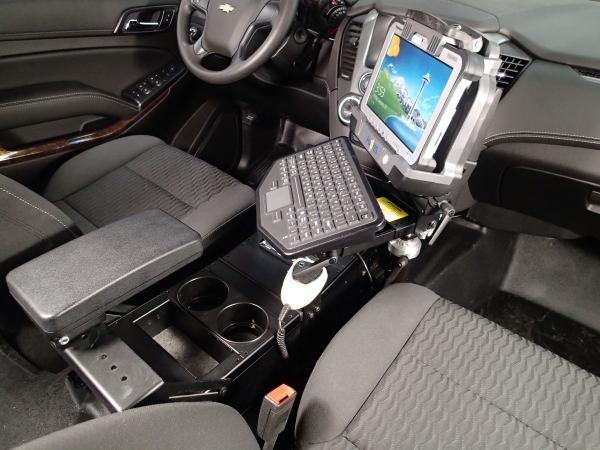

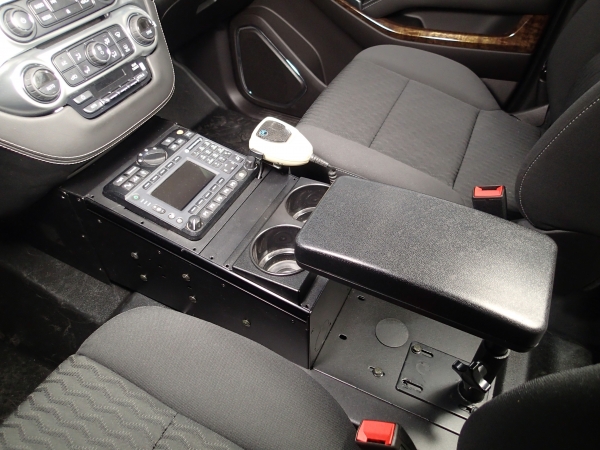

Havis 15″ vehicle specific console for 2015-2018 Chevrolet Tahoe & Chevrolet Suburban special service and PPV Model

Product Features

  • Mounts between bucket seats and fits lower dash contour. Provides 2.5″ between console and seats for added driver comfort and accessory mounting
  • 17″ long forward console housing with 15″ of angled equipment bracket space. Includes 13″ inches of filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • 11″ long removable forward trim panels. Side trim panels now include perforations to allow for equipment cooling as well as internal speaker mounting
  • Passenger side front trim panel includes cutout for OEM 120 volt socket (blank plate also included if 120 volt socket is not used)
  • 10″ long rear plate for mounting optional rear console and / or accessories works with C-1000 standard consoles (sold separately)
  • Includes 2″ plate C-EB20-USD1-1P for mounting OEM 12 volt socket with wire and fuse and aux input module (uses 2″ of internal console space )
  • Includes internal front electrical equipment mounting shelf with removable front side trim panels for easy access
  • Includes provisions for C-HDM-204 or 214 side mount poles (sold separately)
  • Accepts most standard accessories (sold separately)
  • Accepts C-CUP2-I-A11 internal 11 degree angled dual cup holder (sold separately)
  • No additional vehicle mounting kit required
  • If using a vertical gun rack between seats, a partition with gun alcove is recommended
  • Accepts C-SM Series brackets
  • Tahoe PPV with order code – A95 includes OEM center console, this console must be removed and the lower dash panel must be purchased from Chevrolet in order for Havis console to fit properly. Chevrolet p/n for instrument panel lower trim 22885554
  • Face plate # C-EB25-TSC-1P is available for the retail Tahoe OEM heated seat switches (order separately) uses 2.5″ of internal console space


  • Overall measurements = 9″ high x 9″ wide x 28.25″ long (including forward trim panel)
  • Housing measures x 8.5″ high front / 6″ high rear x 9″ wide x 17″ long Plus 11″ front side trim panels
  • See “Side View Depth Measurements” under the resources tab (above) for mounting depth allowance of control heads and/or options
  • Gross Weight: 35.00 lbs
