Whelen CANTROL® WC

Light and Siren System for Total Vehicle Integration and Control

Product Description

Create dynamic unified warning by incorporating every light and siren on your cruiser into custom program configurations. Officers keep both hands on the wheel instead of trying to figure out which button to push!

Your warning system becomes your strongest ally for safety because you can pre-configure the proper response to any situation before it happens…before timing is critical …before an emergency or accident requires instantaneous judgment.

Vehicle integration provides added capability to your light and siren package such as: program and control all the lighting, traffic arrows and siren functions in your vehicle, flash pattern synchronization, canine alarm and temperature monitor control, radar and camera activation, door or trunk opening, window down, gun lock, ignition disable and much more. The abilities of Cantrol WC are limited only by your imagination…

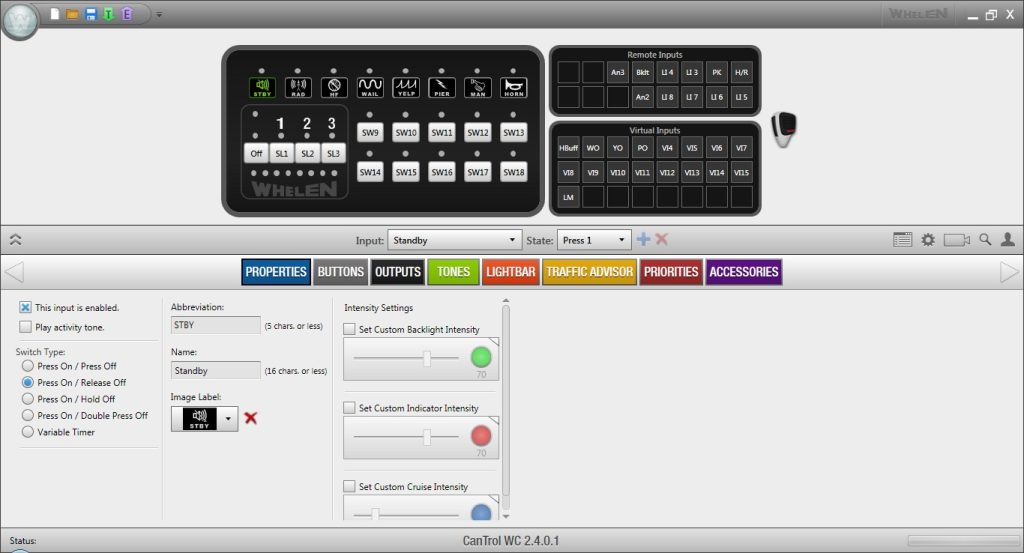

Configuration is easy with a Windows® based computer program. USB port allows for easy program transfer from your computer to the amplifier/control module.

Download Product Brochure

Product Features

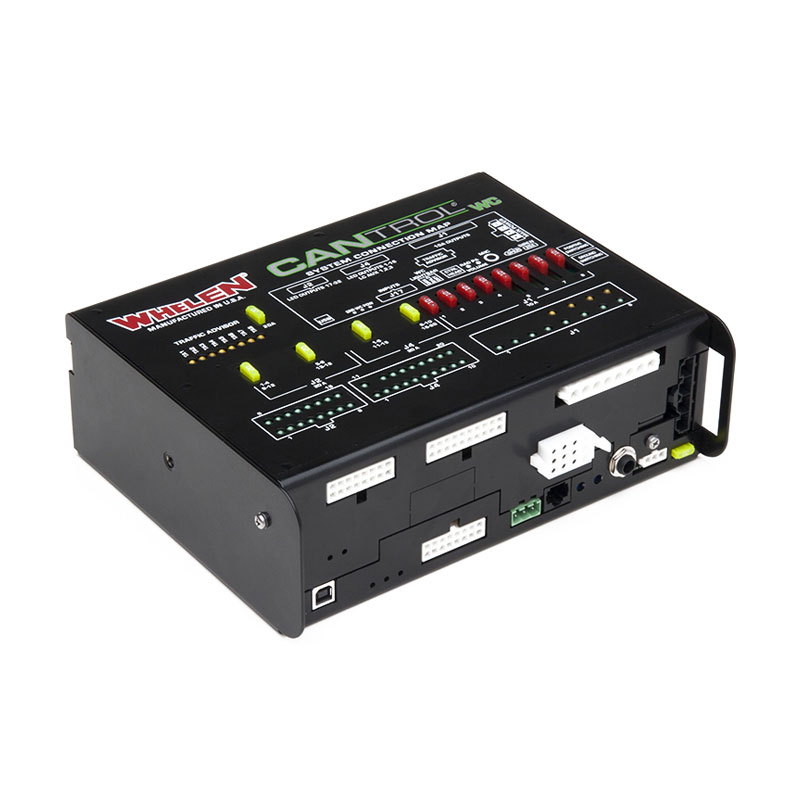

  • Full function amplifier/control module
  • Program and control all the lighting, traffic arrows and siren functions in your vehicle
  • All outputs have both short circuit/over-current protection
  • WeCan® lightbar plugs directly into the amplifier/control module and is programmed by the CanTrol software

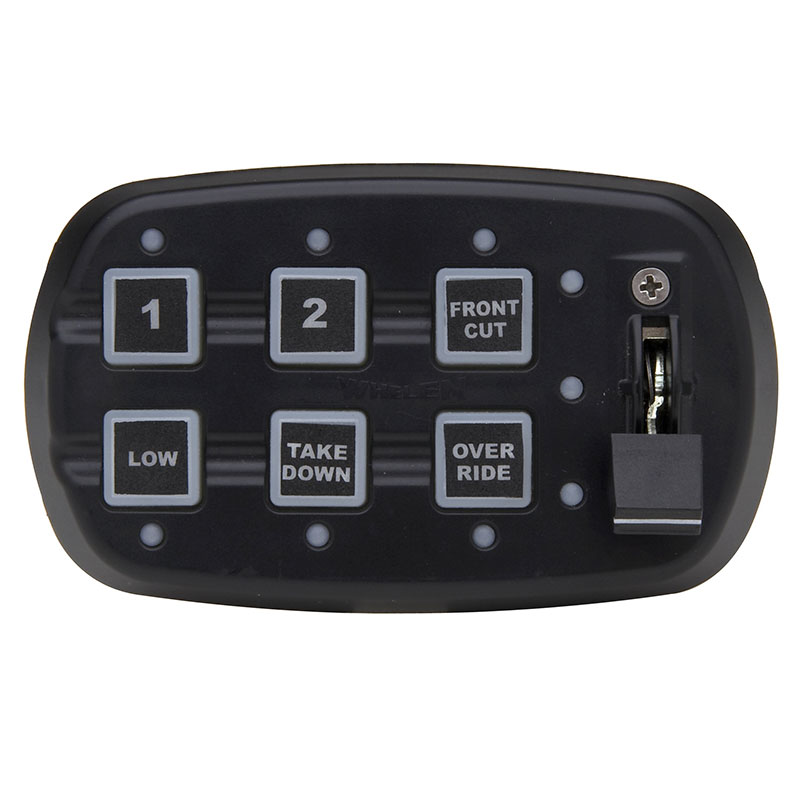

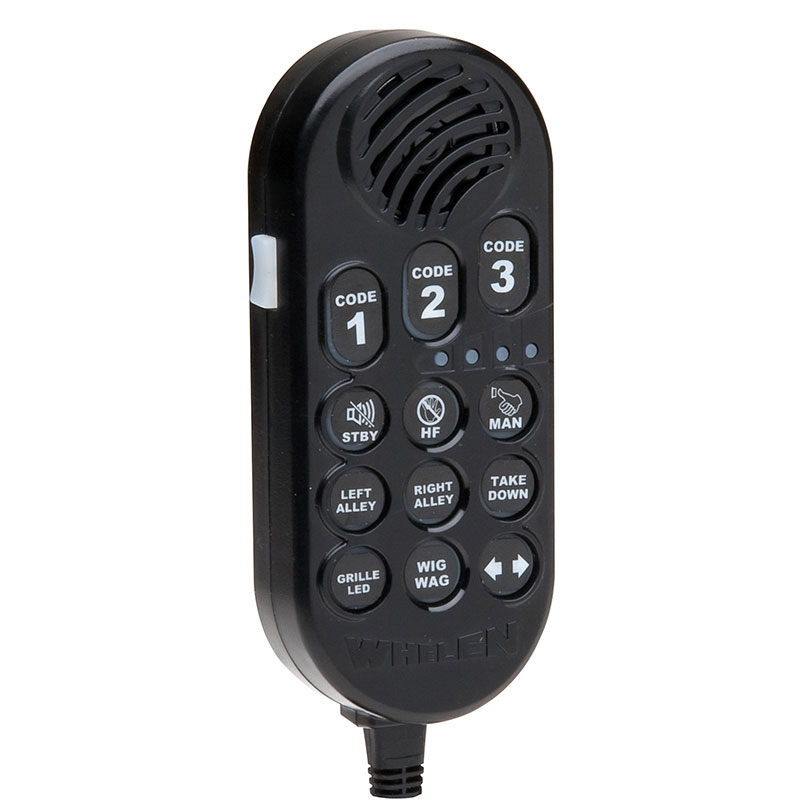

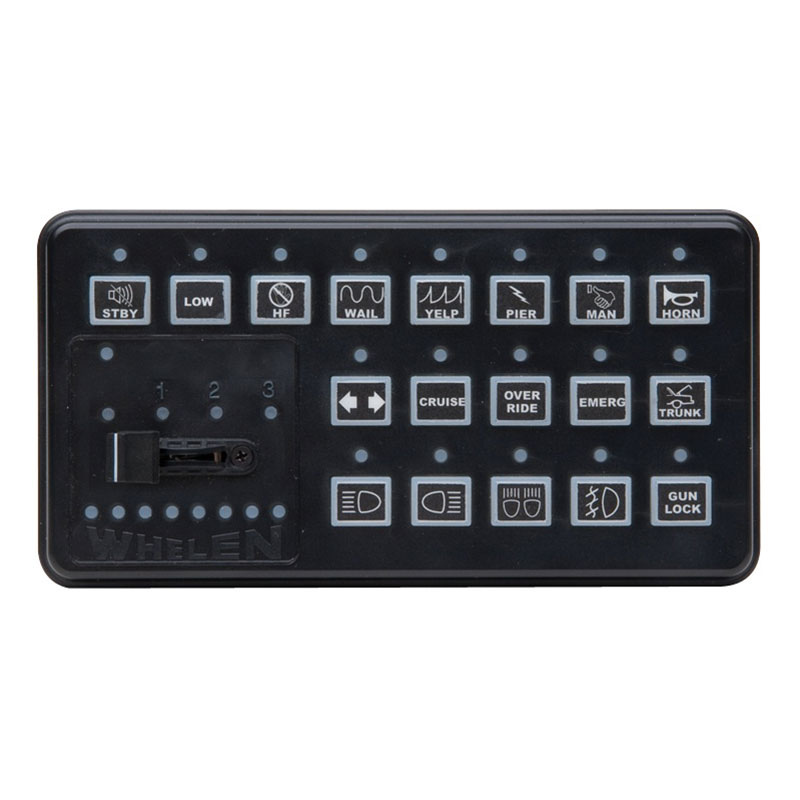

  • Inputs for three different style control heads (ordered separately)
  • Three analog inputs for temperature sensor, ambient lighting, etc.
  • Integrated battery voltage monitor
  • Supports one or two 100 watt speakers
  • Programmable for Hands-Free operation
  • 161 synchronizable, variable-phase, programmable flash patterns
  • Two optional expansion modules allows for 16 additional 2-1/2 amp outputs per module, plugs directly into the WeCan port, for a total of 75 outputs
  • Over 45 programmable siren tones
  • Includes PA and radio repeat functions
  • Built-in system shut-down allows system to operate for up to four hours after vehicle is turned off
  • Redesigned housing with integrated diagnostic LEDs for quick troubleshooting
  • Optimized software
  • Easy to configure using Windows application program
  • Pre-configured programs may be modified and stored for ease of service. Easily extract your custom program and transfer to other vehicles
  • USB port in the amplifier/control module allows easy access for programming
  • Power and input/output cabling with connectors, standard
  • Each output has diagnostic indicator
  • Eight inputs for customer supplied external switches; four for use on positive or ground switching, and four for use on positive switching only
  • Thirty-two 2-1/2 amp outputs
  • Three low current 1/4 amp outputs
  • Eight programmable 10 amp outputs
  • Three Diagnostix™ system indicators
  • Traffic Advisor™ module for traffic arrows that utilize a 9C cable eliminating the use of a traffic arrow controller
  • WeCan lightbar Traffic Advisor can be synchronized with remote Traffic Advisors that utilize a 9C cable
  • Meets or exceeds all applicable SAE, California Title XIII and NFPA requirements with various Whelen speakers, control heads and lightheads
  • Five-year warranty
