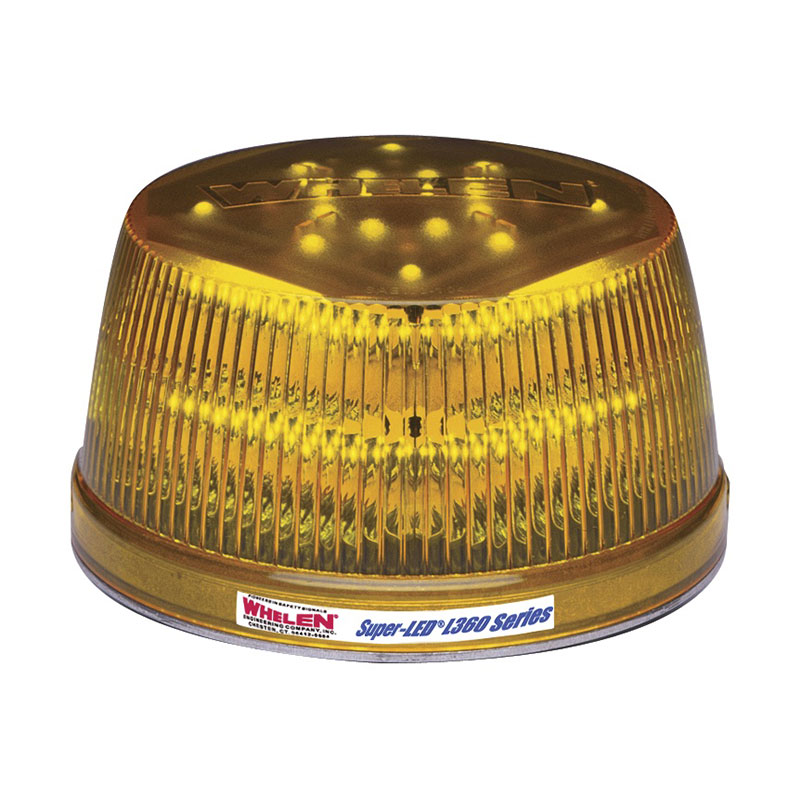

Whelen L31 & L32 Series

Super-LED ® Beacon

Product Description

L31 & L32 beacons provide the utmost versatility, featuring multiple mounting options and high and low dome models.

Download Product Brochure

Product Features

  • UV coated dome
  • Powder-coated cast aluminum base
  • 100% solid-state
  • Conformal coated electronics
  • Full reverse polarity protection
  • Hard-coated domes minimize environmental damage from sand, sun, salt, and road chemicals
  • Available in permanent, magnetic, or magnetic/suction mount models
  • Available in Red, Blue, Amber, and White
  • Rated for thousands of hours of use
  • 12 VDC
  • Five year warranty


L31 Models

  • 4 Amp (peak), 1.6 Amp (average)
  • SAE Class 1 Certified in Amber and Blue
  • California Title XIII Certified in Amber (L31HA_CA models), Blue and Red
  • 4” (102mm) H x 7-3/16” (182mm) Dia.

L32 Models

  • 3 Amp (peak), 0.52 Amp (average)
  • SAE Class 1 Certified in Amber and Blue
  • 2-5/8” (67mm) H x 7-3/16” (182mm) Dia.

NFPA Model

  • Meets NFPA Zone C Upper requirements (L31HRFN Red)

Permanent Mount Models

  • Supplied with a 6” pigtail
  • 28 Scan-Lock™ flash patterns including 4 simulated rotating patterns
  • Alternately or simultaneously flash multiple patterns with up to eight Whelen Super-LED beacons
  • Hi/Low intensity control
  • Cruise light feature

Magnetic & Magnetic/Suction Mount Models

  • Supplied with a 10’ cord and cigar plug with built-in On/Off switch with LED “On” indicator
  • 80 lb. magnetic mounting base
  • 75 SignalAlert™ flashes per minute
