Havis Dash Mount Bracket Ford Pickup

Havis Dash Mount Bracket Kit

Product Description

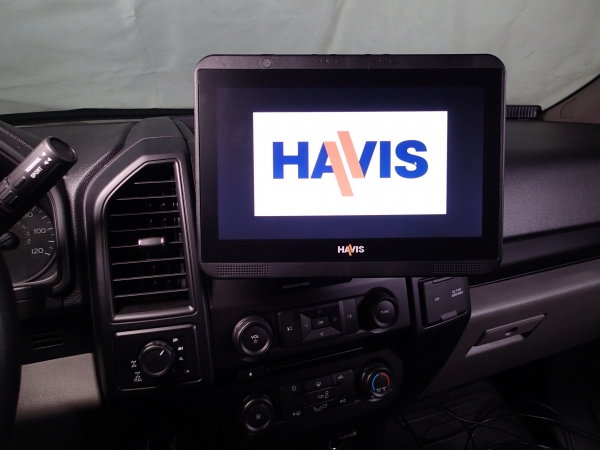

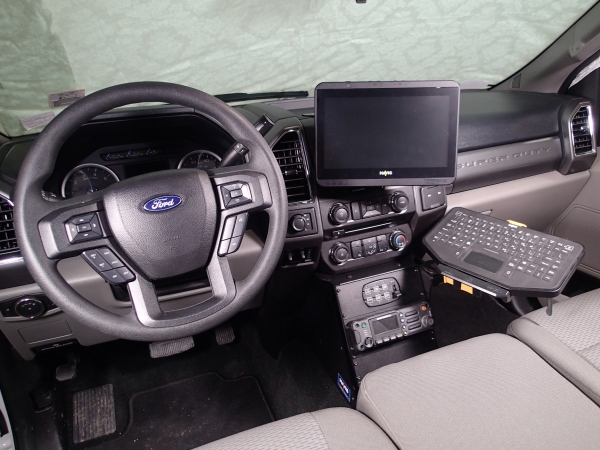

Havis Dash Mount Bracket Kit for 2017-2018 F-250, 350, 450 Pickup and F-450 and 550 Cab Chassis, 2018 Ford Expedition and 2015-2018 Ford F-150

Product Features

  • Havis dash mount bracket kit for 2017-2018 F-250, 350, 450 pickup and F-450 and 550 cab chassis, 2018 Ford Expedition and 2015-2018 Ford F-150 truck with standard am-fm radio only chassis
  • Three vertical mounting positions in as-shipped configuration and rotation plate can be removed and rotated 180 degrees for three additional vertical mounting positions that are approximately 11/16″ lower
  • Designed primarily to be used with Havis touch screen display (TSD-101)
  • Unique friction based hinge allows for easy lift for access to OEM control panel
  • Hinge provides tilt swivel motion for left, right, up and down positioning
  • Bracket allows monitor to be rotated 90 degrees in either direction for landscape or portrait applications
  • Positions computer monitor close to dash in a safe, convenient line of sight
  • Designed with occupants in mind, monitor swivels for improved viewing angle for driver and passenger
  • Excellent space saving solution allows additional equipment to be mounted in console.
  • Easy installation with minimal parts needed for attaching to dash
  • No permanent modification necessary if user desires to run wire harness externally
  • Drilling required if user desires to conceal wire harness inside dash
  • In addition to Havis TSD-101, C-DMM-2000 Series mounts can be used for other light weight devices.
  • Recommended maximum weight carrying capacity = 4 lbs.
  • Please view related products tab for additional innovative Havis solutions

Specifications:

  • Product weight: 3.7 lbs.
  • Testing: Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing
  • Gross Weight: 5.00 lbs
