Description

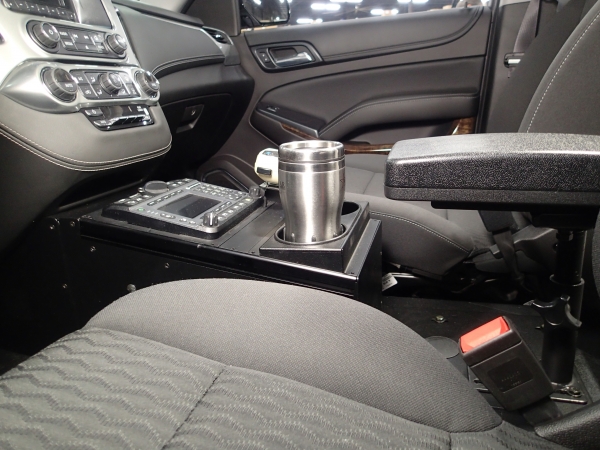

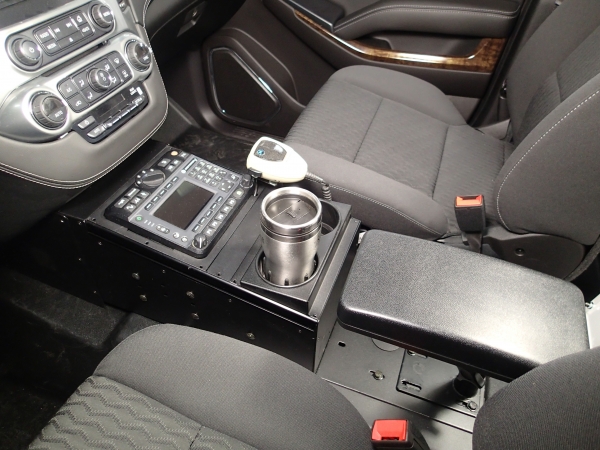

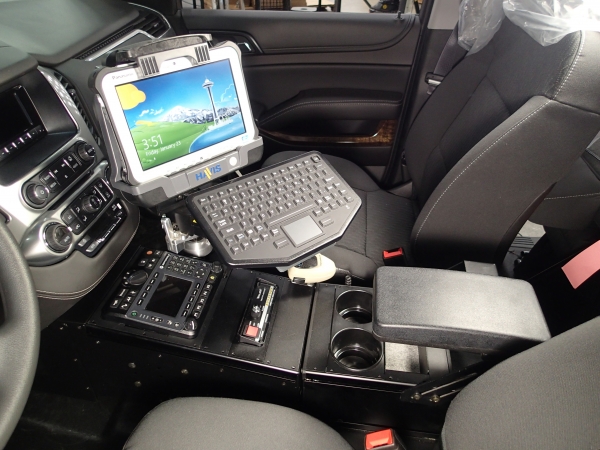

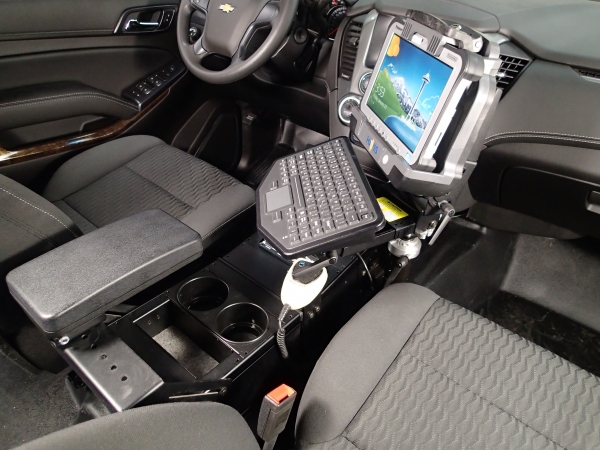

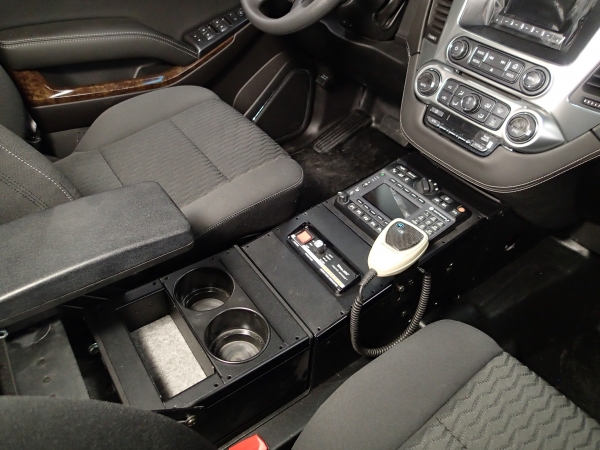

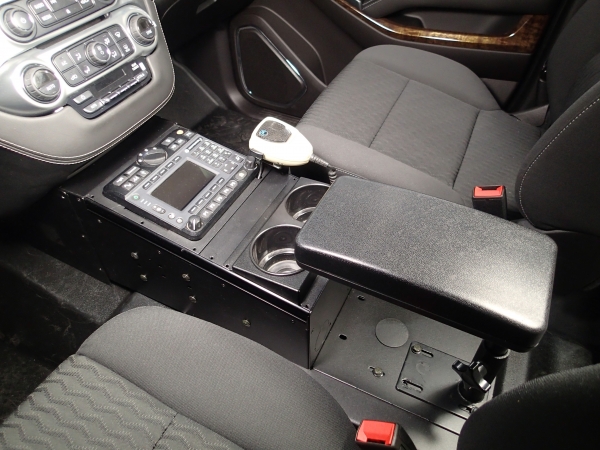

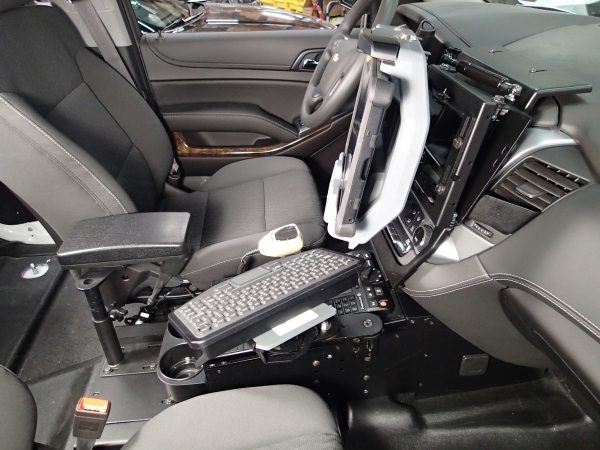

Havis 15" vehicle specific console for 2015-2018 Chevrolet Tahoe & Chevrolet Suburban special service and PPV Model

Features

  • Mounts between bucket seats and fits lower dash contour
  • Provides 2.5" between console and seats for added driver comfort and accessory mounting
  • 17" long forward console housing with 15" of angled equipment bracket space
  • Includes 13" of filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • 11" long removable forward trim panels
  • Side trim panels include perforations to allow for equipment cooling as well as internal speaker mounting
  • Passenger side front trim panel includes cutout for OEM 120 volt socket (blank plate also included if 120 volt socket is not used)
  • 10" long rear plate for mounting optional rear console and/or accessories
  • Works with C-1000 standard consoles (sold separately)
  • Includes 2" plate C-EB20-USD1-1P for mounting OEM 12 volt socket with wire and fuse and aux input module (uses 2" of internal console space)
  • Includes internal front electrical equipment mounting shelf with removable front side trim panels for easy access
  • Includes provisions for C-HDM-204 or 214 side mount poles (sold separately)
  • Accepts most standard accessories (sold separately)
  • Accepts C-CUP2-I-A11 internal 11 degree angled dual cup holder (sold separately)
  • No additional vehicle mounting kit required
  • If using a vertical gun rack between seats, a partition with gun alcove is recommended
  • Accepts C-SM Series brackets
  • Tahoe PPV with order code A95 includes OEM center console; this console must be removed and the lower dash panel must be purchased from Chevrolet for proper Havis console fitment
  • Chevrolet instrument panel lower trim part number: 22885554
  • Face plate # C-EB25-TSC-1P is available for retail Tahoe OEM heated seat switches (order separately) and uses 2.5" of internal console space

Specifications

  • Overall measurements: 9" high x 9" wide x 28.25" long (including forward trim panel)
  • Housing measurements: 8.5" high front / 6" high rear x 9" wide x 17" long
  • Includes 11" front side trim panels
  • See "Side View Depth Measurements" under the resources tab for mounting depth allowance of control heads and/or options

Weight

  • Gross Weight: 35.00 lbs
