Havis Tahoe K9 Transport System for 2015-2018 Chevrolet Tahoe
Features
For 2015-2018 Chevrolet Tahoe

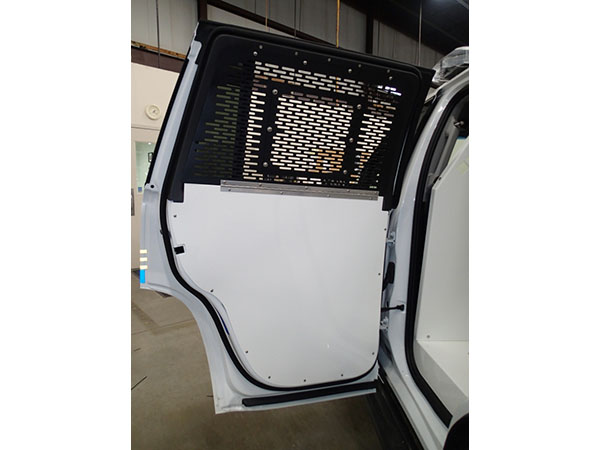

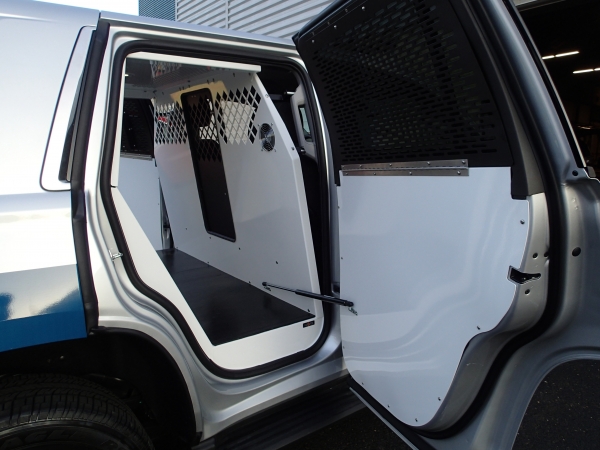

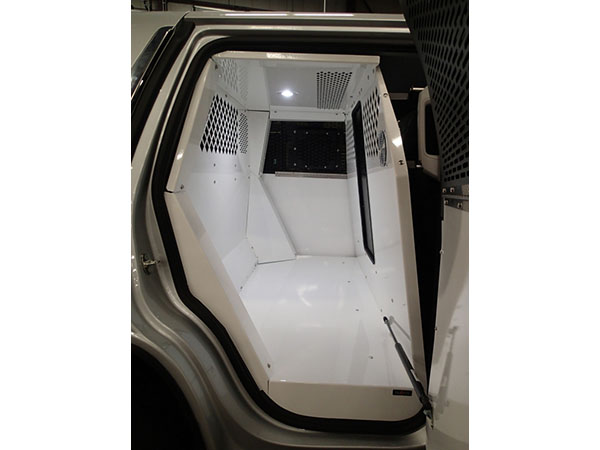

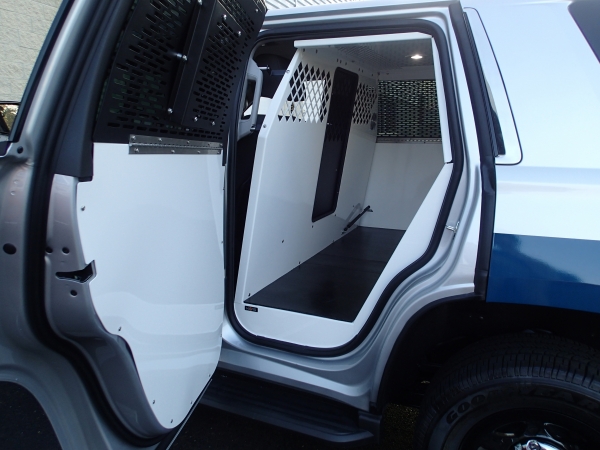

Kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
Fabricated from heavy-duty aluminum for long-lasting durability
Super durable white powder coat finish
Easy to install and clean

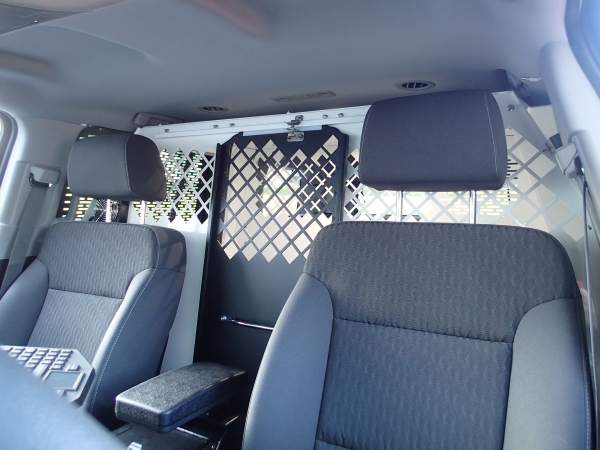

Designed to maximize driver seat travel without compromising K9 entry

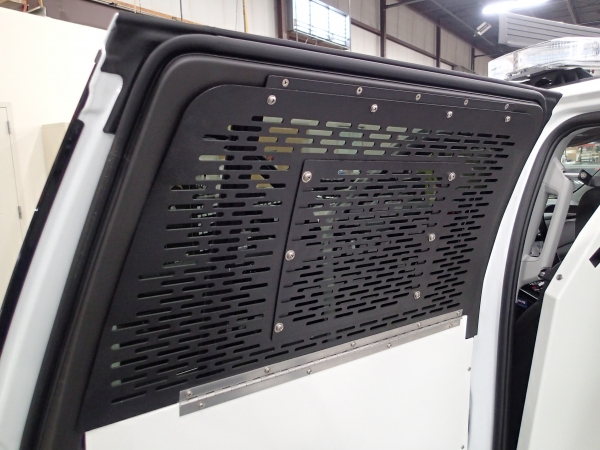

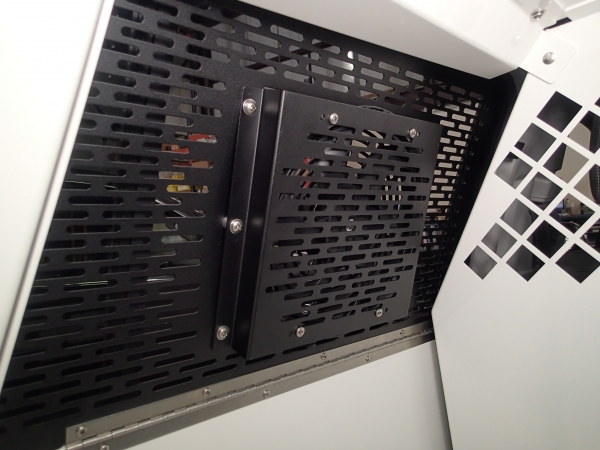

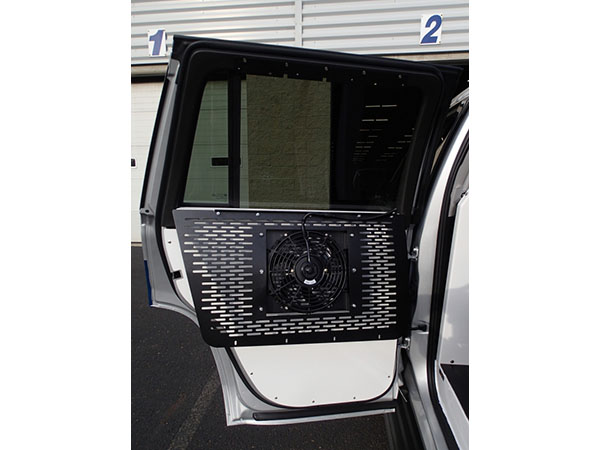

Window guards include bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting
Fan can mount on driver or passenger side
10" fan and mount kit for window guard mounting (# K9-A-104 fan option sold separately)

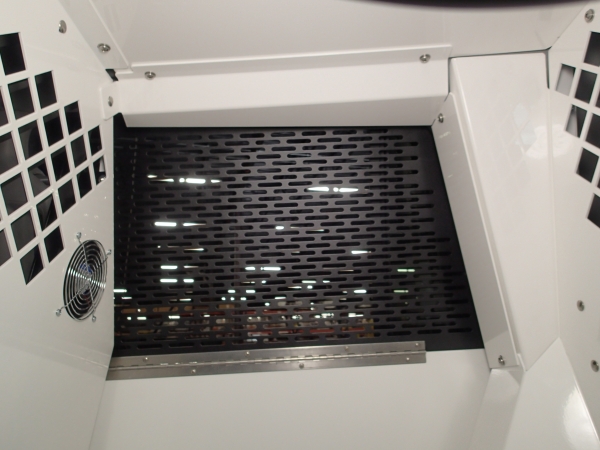

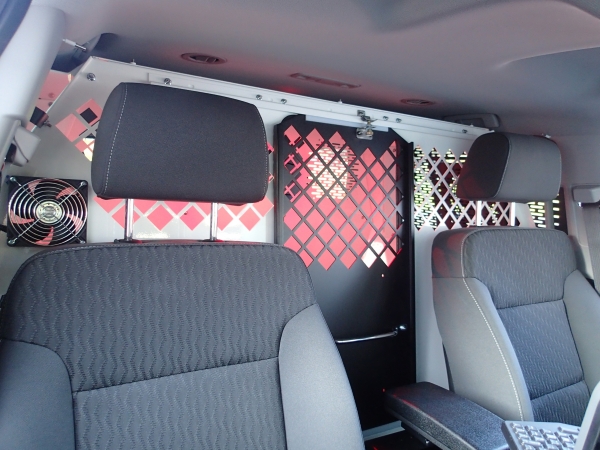

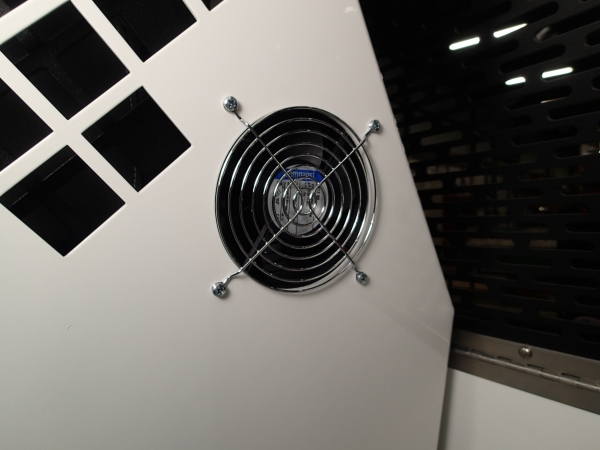

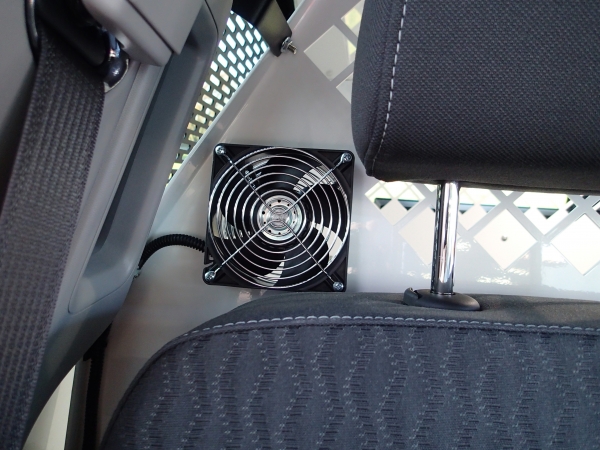

Front wall includes mounting location for optional air circulation fan (K9-A-102 sold separately)

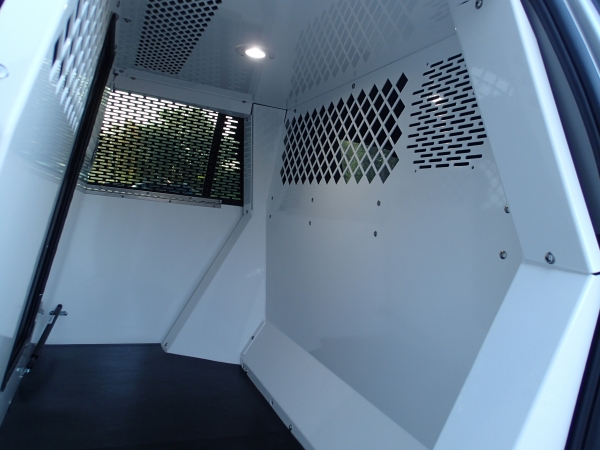

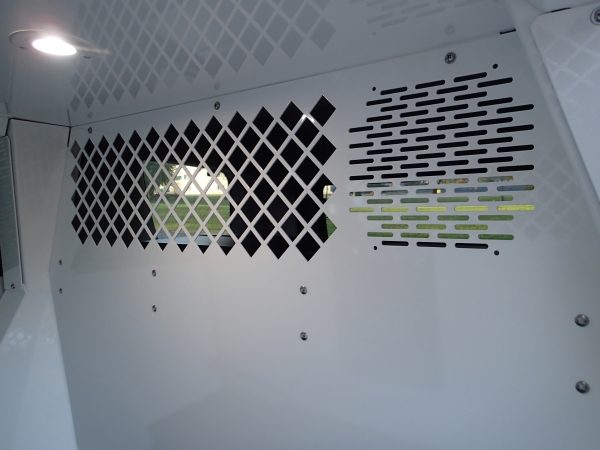

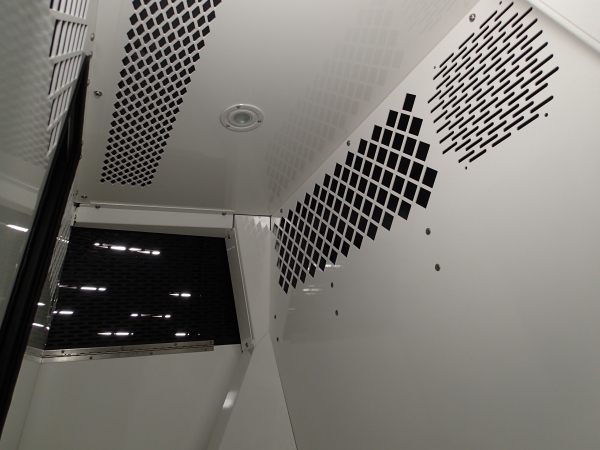

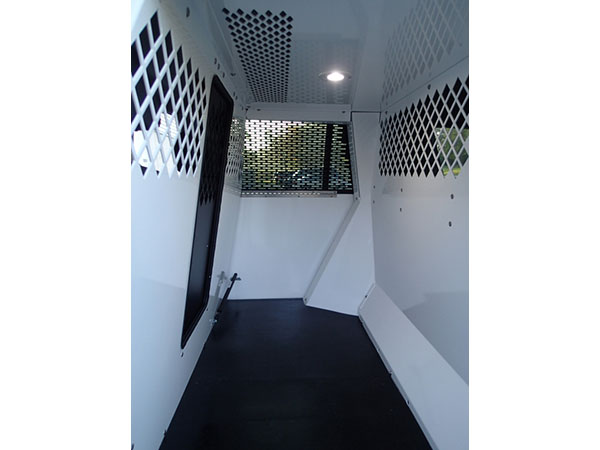

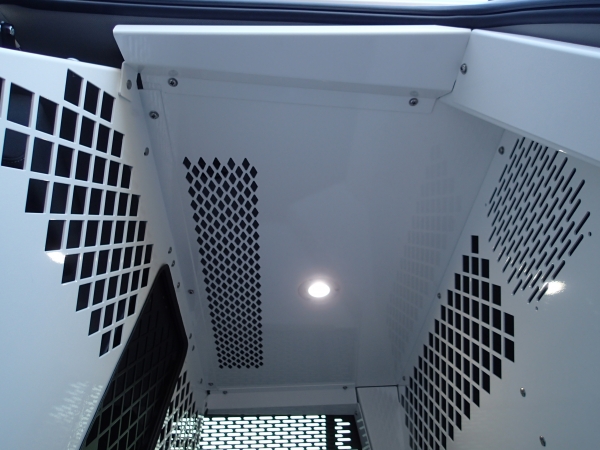

Ceiling includes perforated area to allow OEM air conditioning vents to blow into K9 compartment

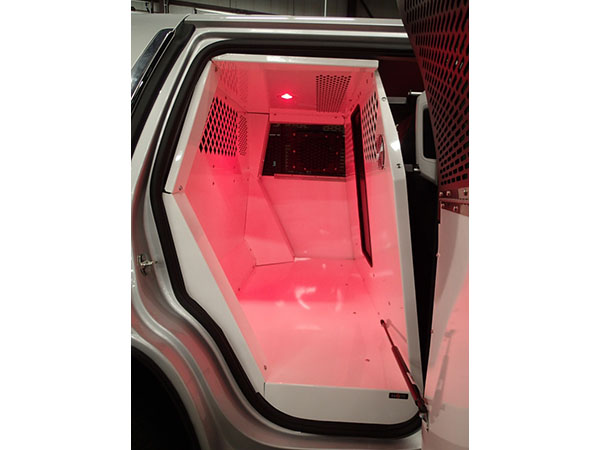

Ceiling also includes LED dome light with white or red color feature (two position rocker switch included)

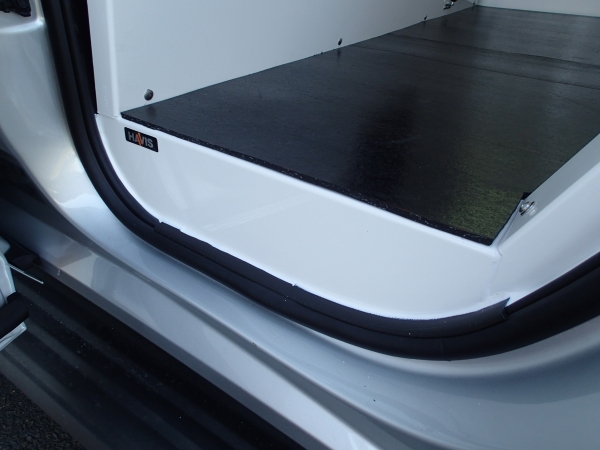

Includes heavy duty rubber mat
Specifications
Does not accept the K9-A-101 option (see K9-C23-2)
Kit dimensions: 31" deep by 64" wide by 41" high
Floor is as low as possible (25.75" off ground)
Front entry door opening: 14" wide x 30" high

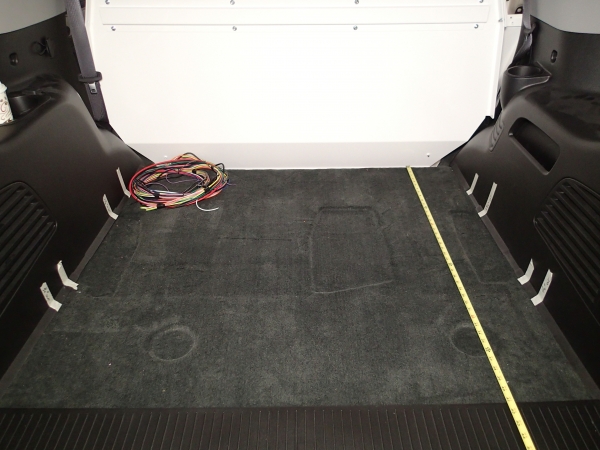

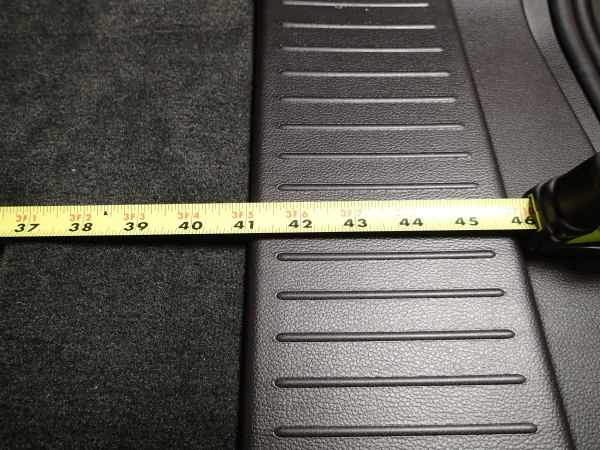

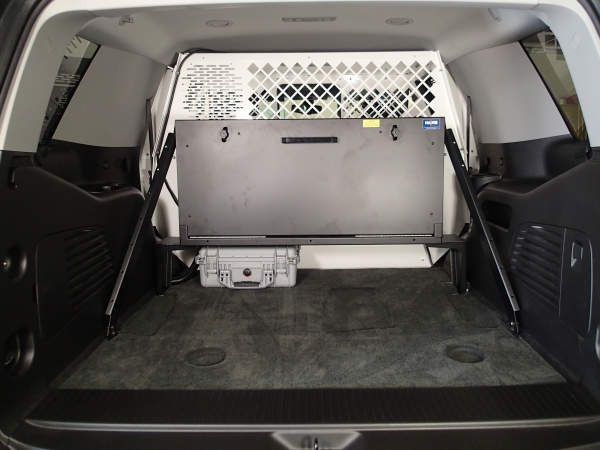

41 inches from rear K9 wall to rear sill trim, plus 4 inches from sill trim to OEM rear hatch (45" total)
K9 kit window guards include a .281" x 1.75" obround slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment
