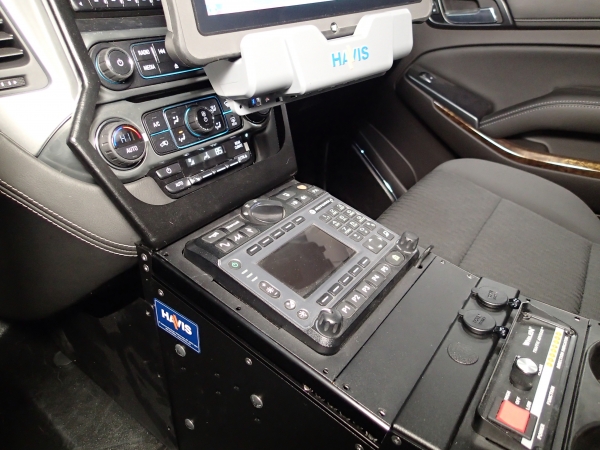

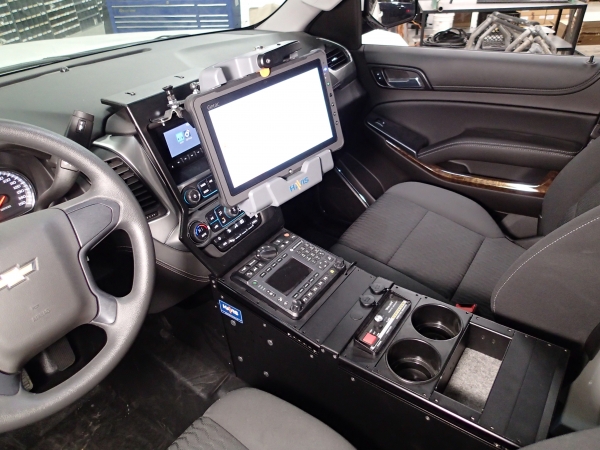

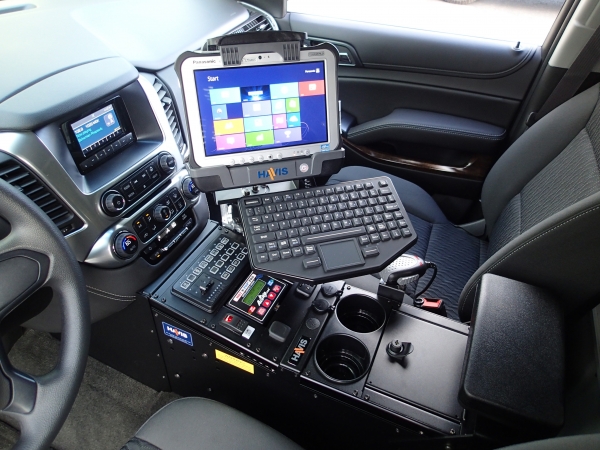

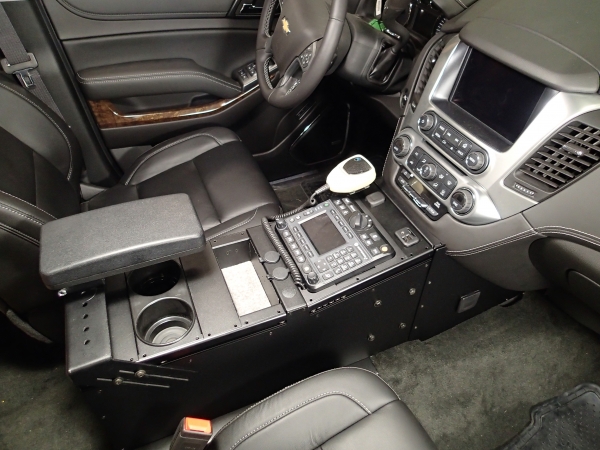

Havis 23" vehicle specific console for 2015-2018 Chevrolet Tahoe police pursuit vehicle (PPV) & 2015-2018 Chevrolet Suburban
Features
Mounts between bucket seats and fits to dash contour
Provides 2.5" between console and seats for added driver comfort and accessory mounting
23" of internal control head and accessory mounting space
Includes 21" of filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
Includes 2" plate C-EB20-USD1-1P for mounting OEM 12 volt socket and aux input module (uses 2" of internal console space in front 10" section)
Face plate # C-EB25-TSC-1P is available for the retail Tahoe OEM heated seat switches (order separately)
Includes internal front electrical equipment mounting shelf with removable front side trim panels for easy access
Passenger side front trim panel includes cutout for OEM 120 volt socket (blank plate also included if 120 volt socket is not used)
Side panels include perforations to allow for equipment cooling as well as internal speaker mounting
Includes two (2) 12 volt sockets with wire and fuse mounted in top center reinforcement bracket

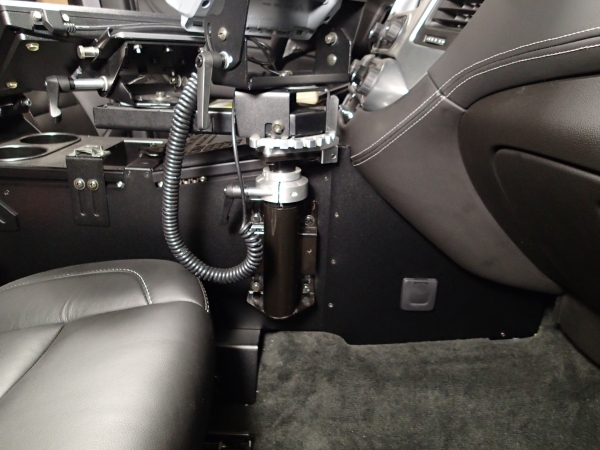

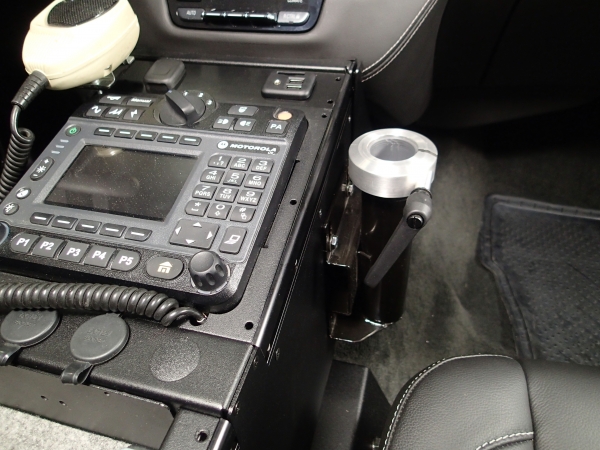

Console includes provisions for external side mount poles C-HDM-204 or C-HDM-214 (sold separately)
As of 5/1/16, a front diagonal brace was added for increased support when using side mount poles

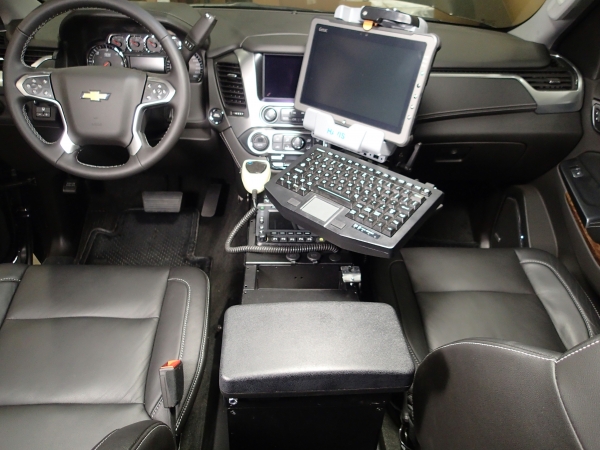

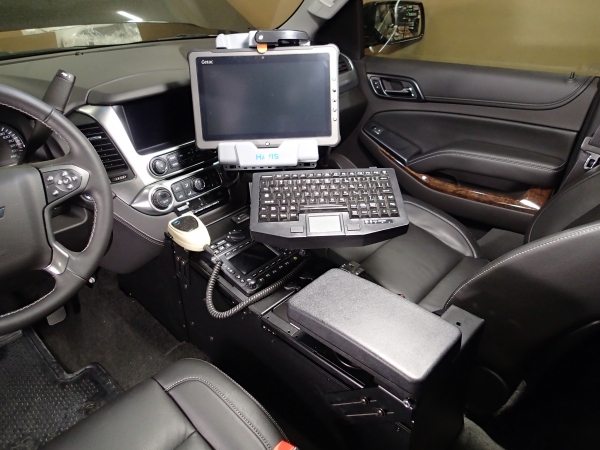

C-ARM-102, C-ARM-103 or C-ARM-105 arm rests recommended (sold separately)
Accepts C-SM Series brackets

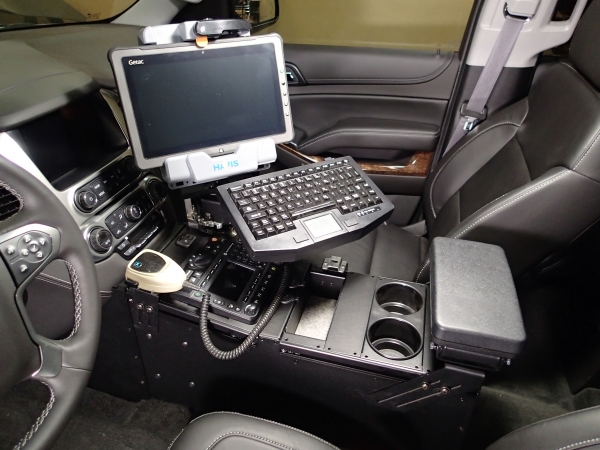

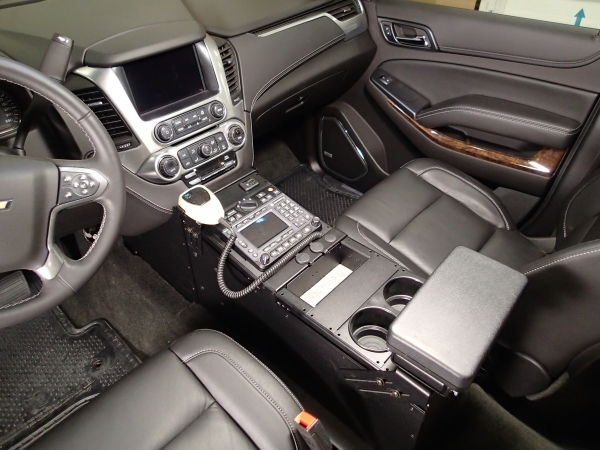

Accepts C-CUP2-I dual cup holder (sold separately) mounted in rear horizontal section
Accepts C-CUP2-I-A11 internal 11 degree angled dual cup holder (sold separately) mounted in forward angled section
Accepts C-AP-1395 (13" long x 9.5" deep) accessory pocket
If using a vertical gun rack between seats, a partition with gun alcove is recommended
Tahoe PPV with order code A95 includes OEM center console; this console must be removed and the lower dash panel must be purchased from Chevrolet for proper Havis console fitment
Chevrolet instrument panel lower center trim part number: 22885554
Works with C-DMM-2014
Specifications
Works with C-DMM-135 only if installer adjusts DMM frame upward and drills new holes in side mount brackets

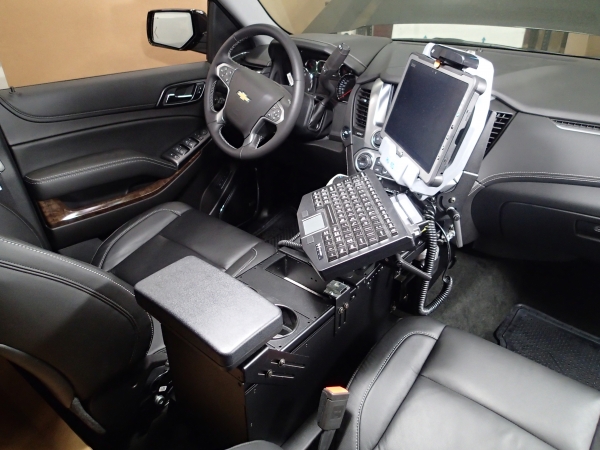

DMM frame mounts to top of console
Housing measures: 12" high front / 10" high rear x 9" wide x 26" long
Includes 12" front side trim panels
See side view drawing for min/max mounting depth allowed for control heads and/or options
