Havis K9 Transport System 2013-2018 Ford Police Interceptor Utility SUV
Features
K9 transportation system
For 2013-2018 Ford Police Interceptor Utility
Unique white powder coat finish
Easy to install and clean

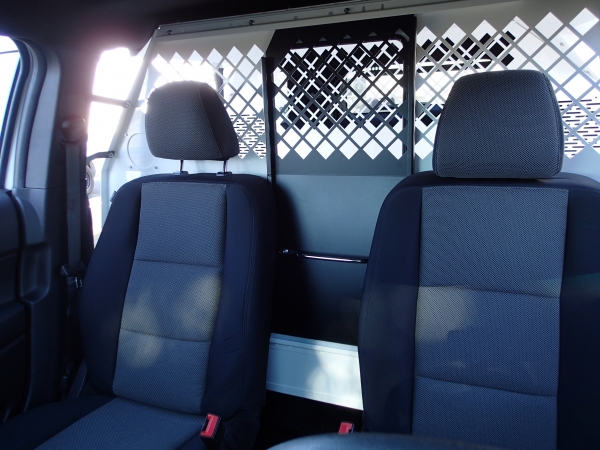

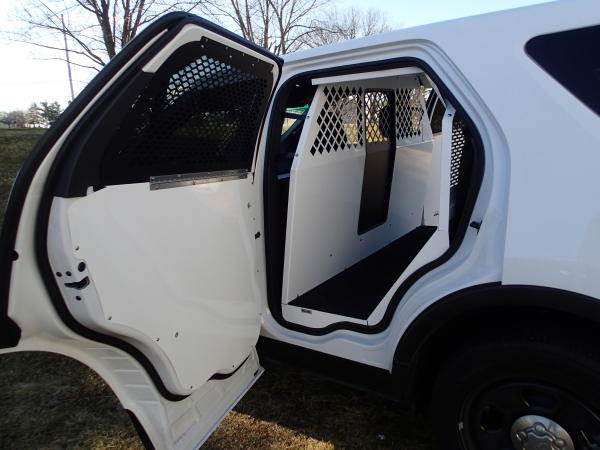

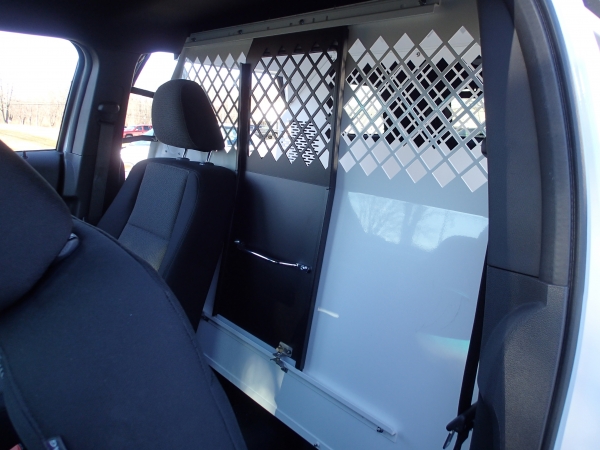

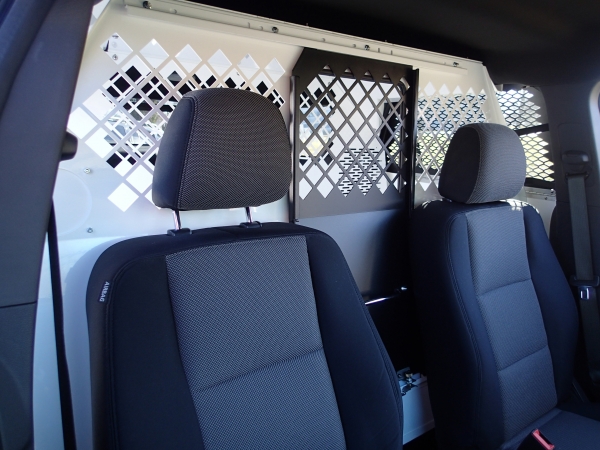

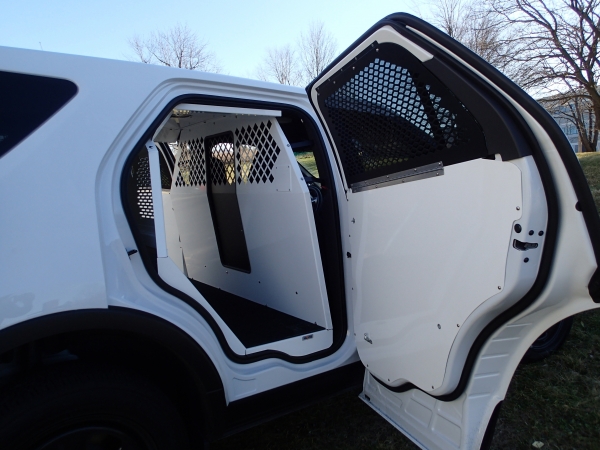

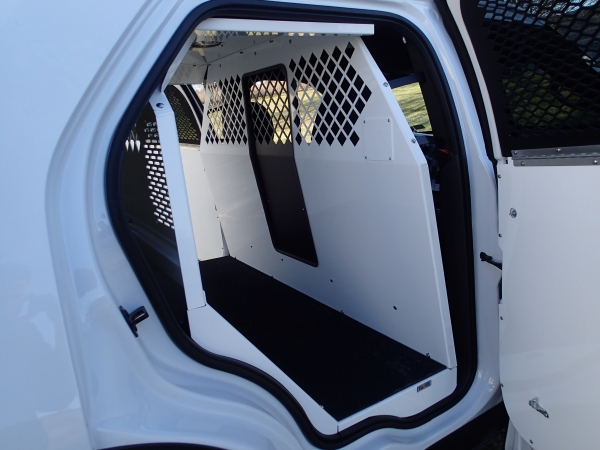

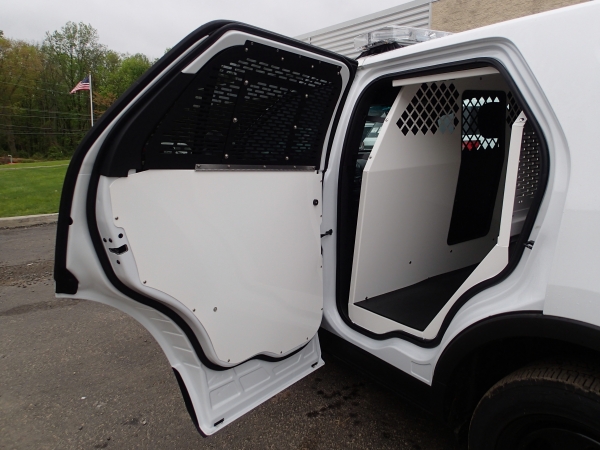

SUV kit housing with one front sliding door, aluminum fold-down interior window guards and door panels
Fabricated from heavy-duty aluminum for long-lasting durability

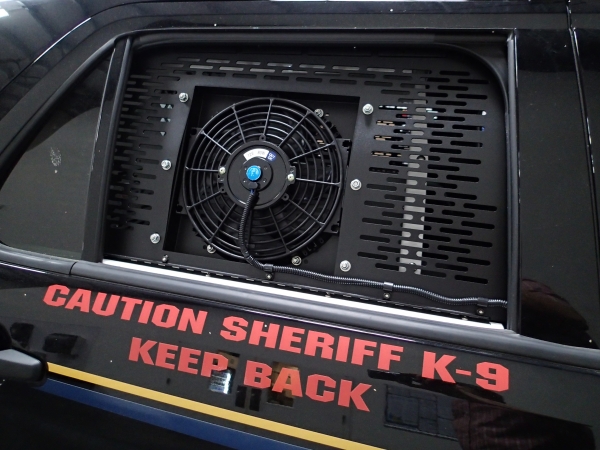

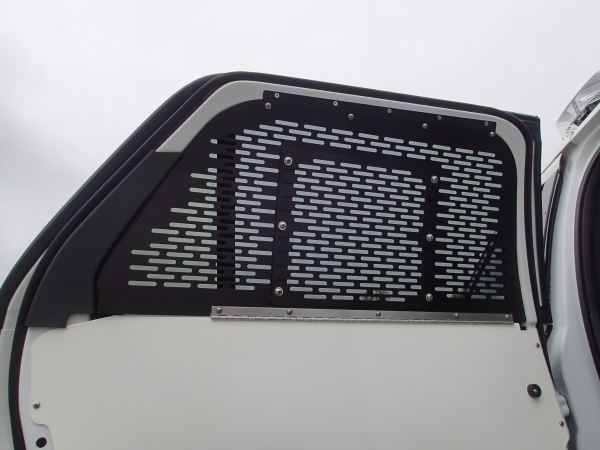

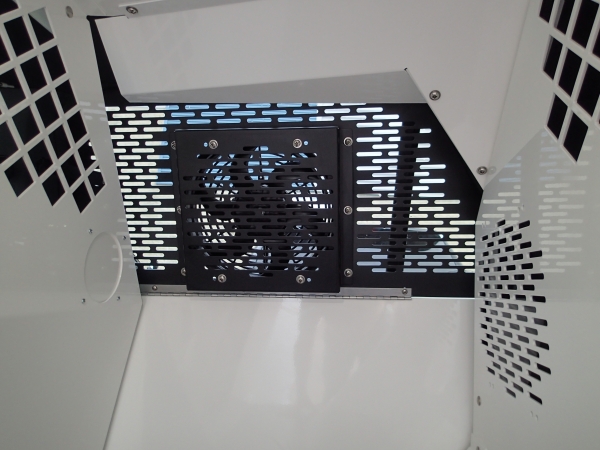

Window guards include bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting
Fan can mount on driver or passenger side
10" fan and mount kit for window guard mounting (use p/n: K9-A-104 option sold separately)

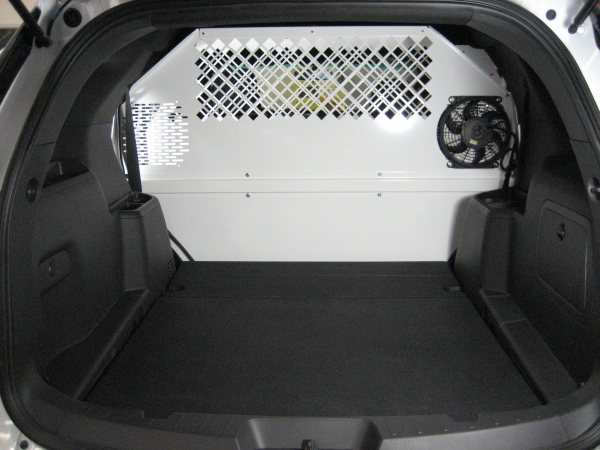

Rear bulkhead includes 2 mounting locations for optional 10" emergency exhaust fan (K9-A-301 sold separately)
Works with OEM rear cargo floor / spare tire cover or Havis C-TTP-INUT-1, C-TTP-INUT-2 and C-TTP-INUT-200
12" fan not recommended
Does not accept the K9-A-101 option
Does not work in Ford retail Explorer
For K9 applications, it is recommended to order the Interceptor Utility with the OEM optional aux rear air conditioning (Ford option code 17A)
Specifications
SUV kit dimensions: 28" deep by 64" wide by 40" high

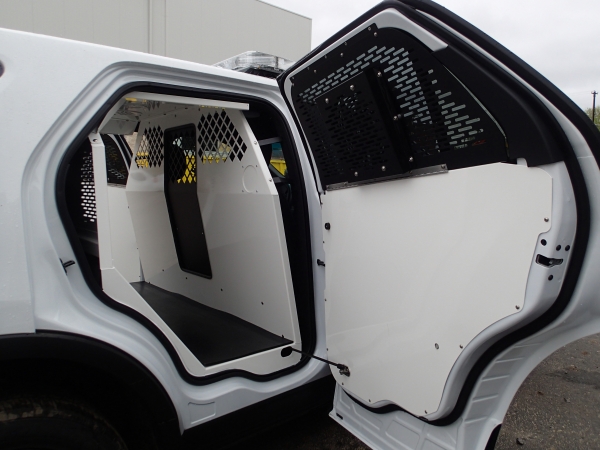

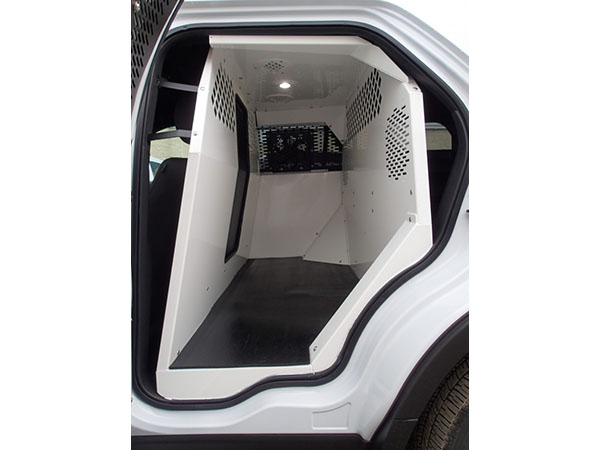

Side entry openings are 24" wide x 37" high

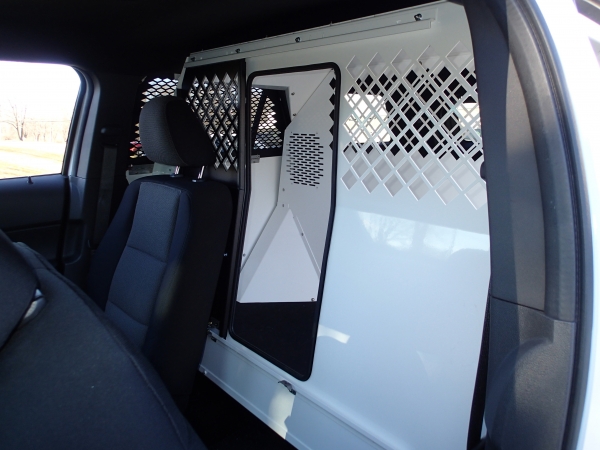

Front entry door opening: 14" wide x 30.85" high
Measurement from top of K9 floor to ground: 22" inches

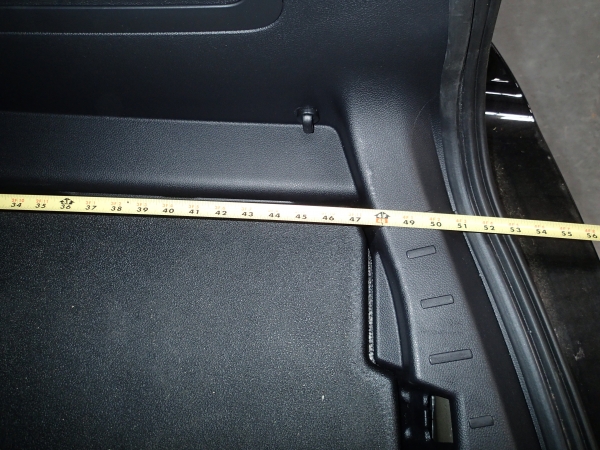

Rear cargo space behind K9 wall to rear door sill trim is 40" wide x 47" long

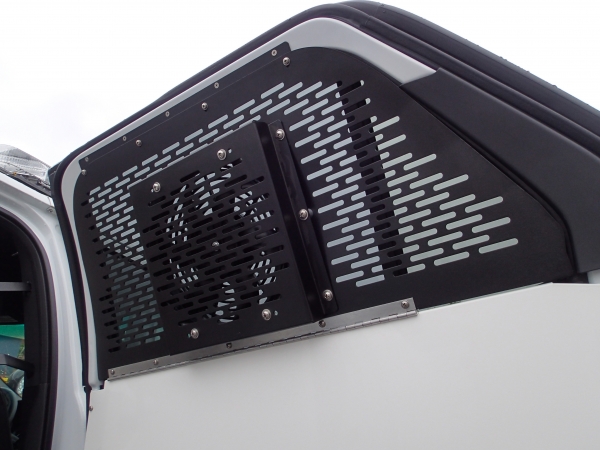

K9 kit window guards include a .281" x 1.75" obround slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment
