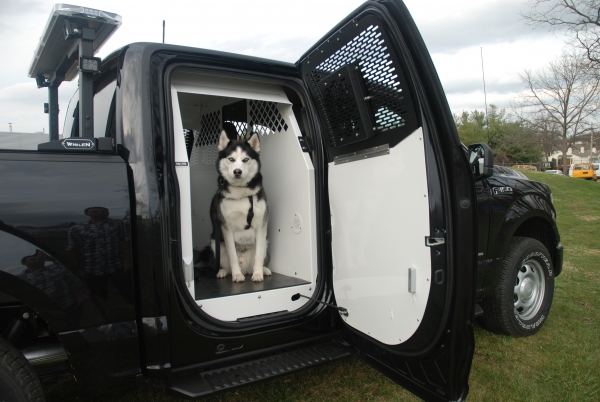

2017-2018 F-250, 350, 450 crew cab pickup, F-450 and 550 crew cab /cab chassis, 2015-2018 Ford F-150 and F-150 special service vehicle (SSV) crew cab pickup K9 Transport System
Features
For 2017-2018 Ford F-250, 350, 450 crew cab pickup, F-450 and 550 crew cab/cab chassis, 2015-2018 Ford F-150 and F-150 Special Service Vehicle (SSV) crew cab pickup

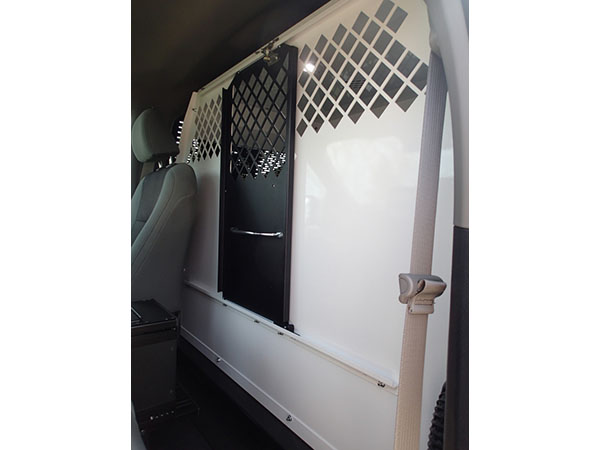

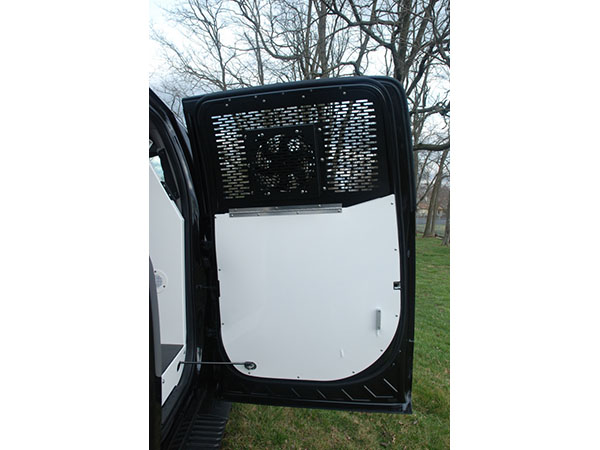

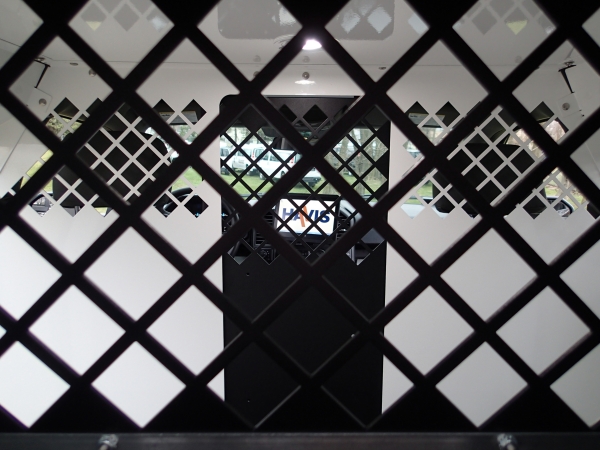

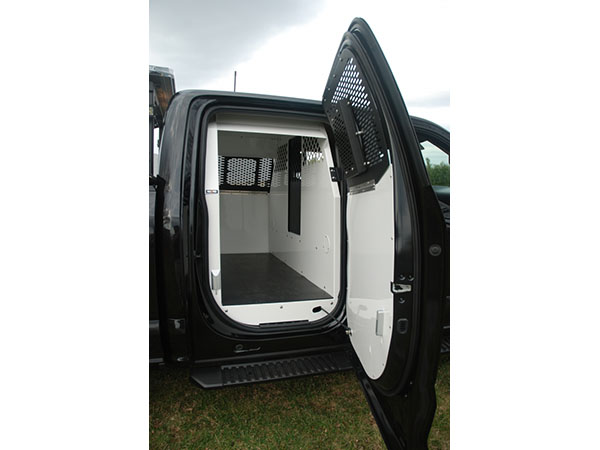

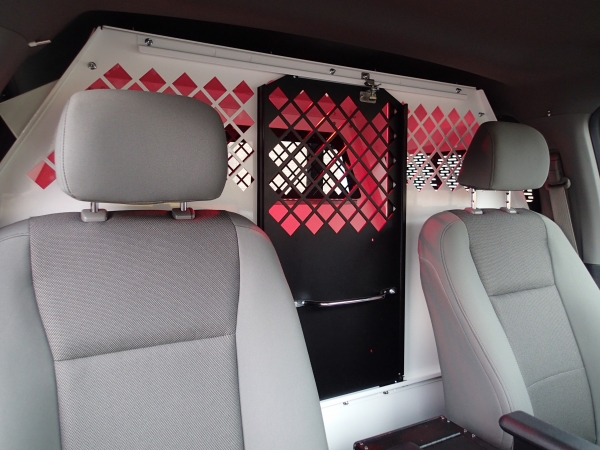

Kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
Fabricated from heavy-duty aluminum for long-lasting durability
Super durable white powder coat finish on main components
Black medium texture semi gloss powder coat finish on center sliding door and window guards
Easy to install and clean

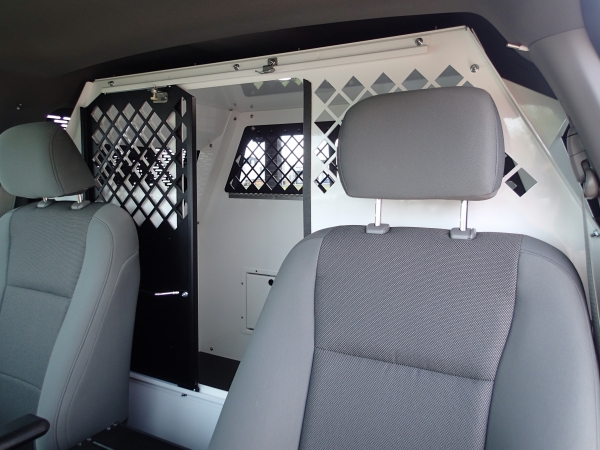

Designed to maximize driver seat travel without compromising K9 entry
Mounts to OEM mounting points (no drilling required)

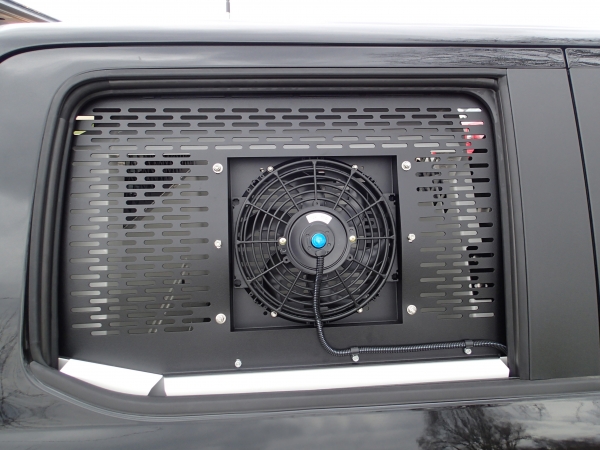

Window guards include bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting
Optional 10" fan and mount kit (use p/n: K9-A-104) can mount on driver or passenger side

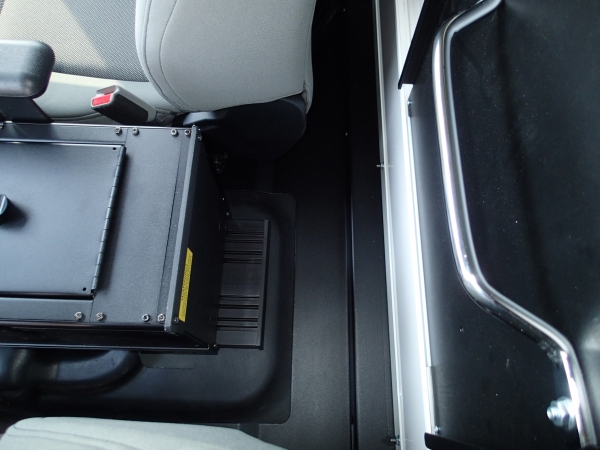

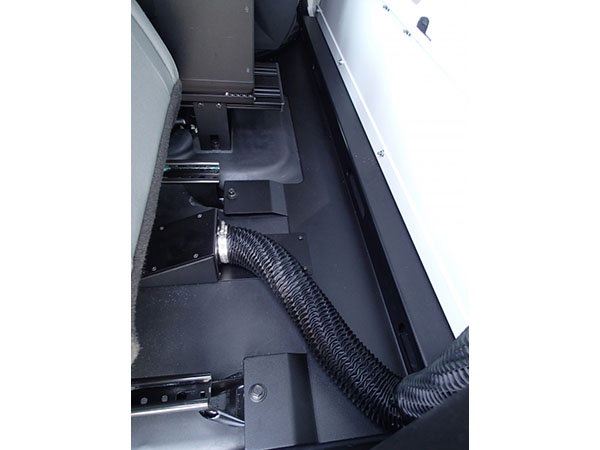

Includes adaptors and hose to connect from OEM ductwork under seats
Hose connects to vents on K9 compartment front wall
Upper guard on rear wall folds down to allow easy access and cleaning

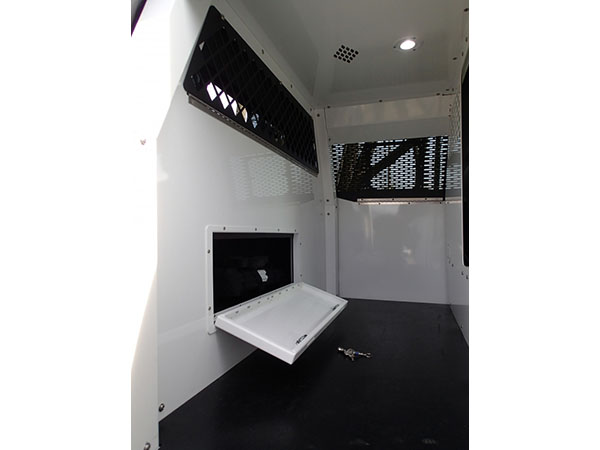

Lower rear wall includes locking fold down door to access vehicle jack, OEM optional inverter and access for cleaning
Includes relocation brackets for jack and OEM optional inverter

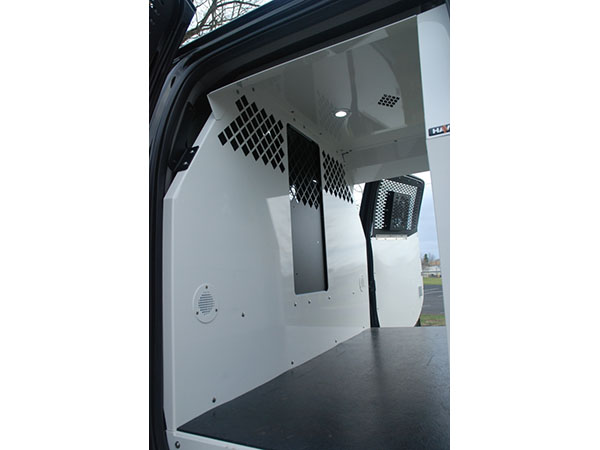

K9 kit window guards include a .281" x 1.75" slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment
Optional 10" fan and mount kit for window guard mounting (# K9-A-104 fan option sold separately)
Specifications
12" fan not recommended
Does not accept the K9-A-101 option
Purchasing OEM optional running boards is recommended to aid in K9 entry
Dimensions

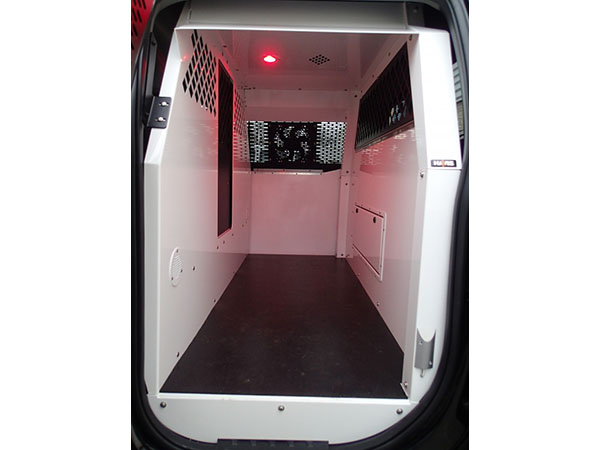

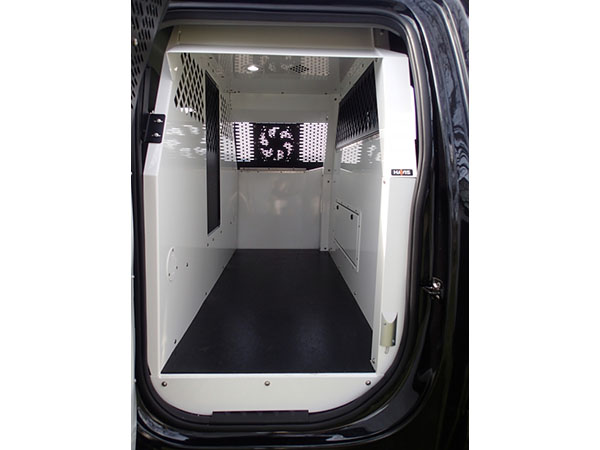

Kit inside dimensions: 28" deep by 65" wide by 43.5" high

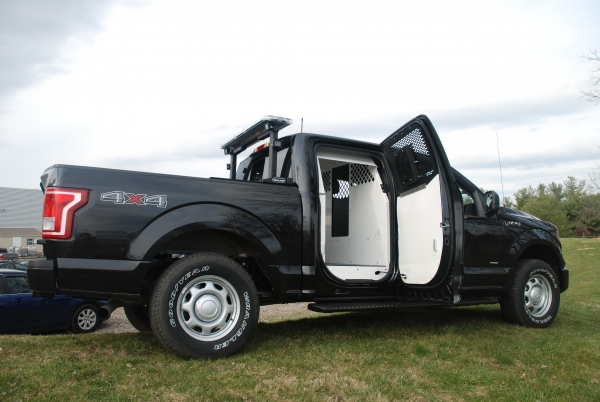

Side entry openings: 25.5" wide x 37" high

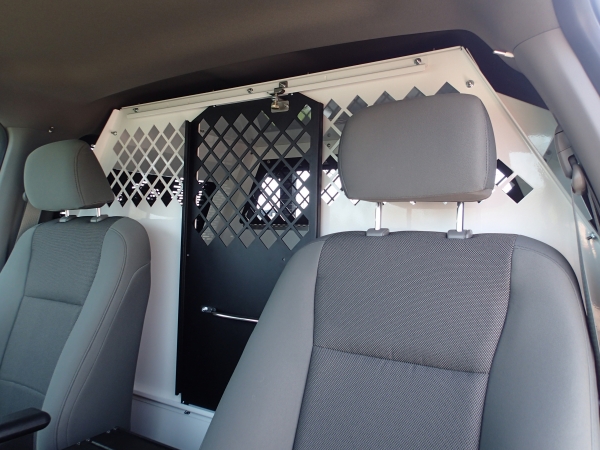

Front wall sliding door opening: 14" wide x 30" high
K9 compartment floor to ground: 29.375"
Storage space between rear K9 wall and cab wall: 6 inches long x width of cab
