Features
- Same lane problems eliminated through automated direction sensing technology
- Eliminates the need for manual faster/slower target input during same lane operation
- Makes same lane operation as accurate and simple as opposite lane mode
Available Functions
- Operator can display or lock:
- Strong targets
- Fast targets
Operational Modes
- Same lane mode
- Opposite lane mode
- Stationary mode
True Doppler Audio
- Opposite-lane Doppler tone is generated from the target's actual speed rather than closure speed
- Audio tone directly correlates to target speed regardless of patrol speed
Vehicle Speed Sensing (VSS) Operation
- Standard VSS support included
- Simple plug-and-play installation through the vehicle's OBD II diagnostic port
- No wire splicing or harness modifications required
Voice Verification System
- Audible verification announces:
- Active antenna (front or rear)
- Radar mode (moving or stationary)
- Vehicle direction (opposite or same direction)
- Helps ensure operational accuracy during every target lock
Track-Thru Lock with 3 Window Multi-Colored LEDs
- Tracks patrol speed and target speeds after lock
- Uses amber, red, and green LEDs to differentiate strongest, faster, and patrol speeds

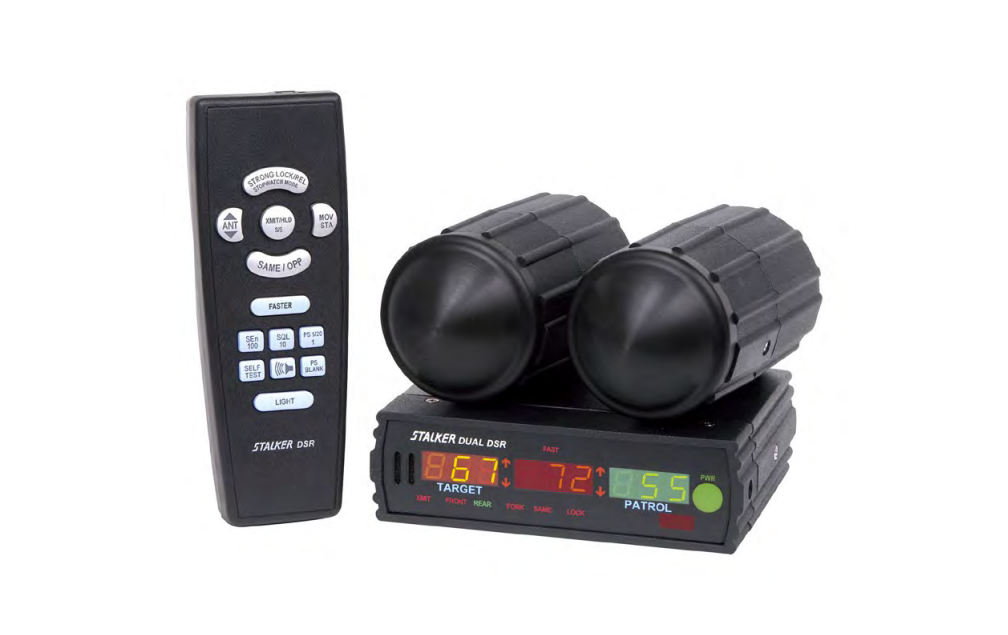

Compact Counting Unit with Detachable Display
- Compact display/counting unit mounts almost anywhere
- Dimensions: 5.5" wide x 4.25" deep x 1.75" tall
- Display/counting unit can be separated and independently mounted with optional cable
- Display alone measures only 1.125" deep

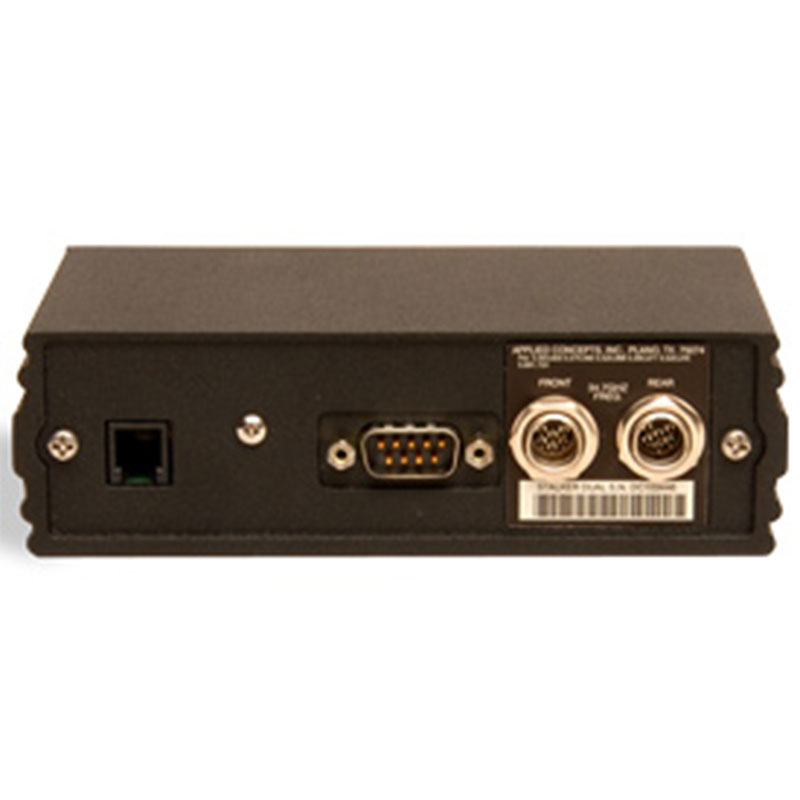

Serial Port
- RS-232 serial port interfaces with:
- Video cameras
- Computers
- Remote readouts
- Printers
- Compatible with 54Ward and Rockwell-Collins integrated car systems
Automatic Same-Lane Operation
- Direction sensing antennas automatically determine whether same-direction vehicles are closing or moving away
- Automatically measures same-direction traffic speeds without operator input
- Allows locking of same-direction targets
- Simplifies and automates same-direction enforcement
Enhanced Stationary Operation
- Direction sensing allows monitoring of specific traffic directions
- Measures approaching vehicles while ignoring vehicles traveling away
- Improves long-distance target tracking in complex traffic situations
- Prevents nearby departing vehicles from interfering with distant approaching target readings
- Enhances stationary radar effectiveness in a wider range of environments
