Description

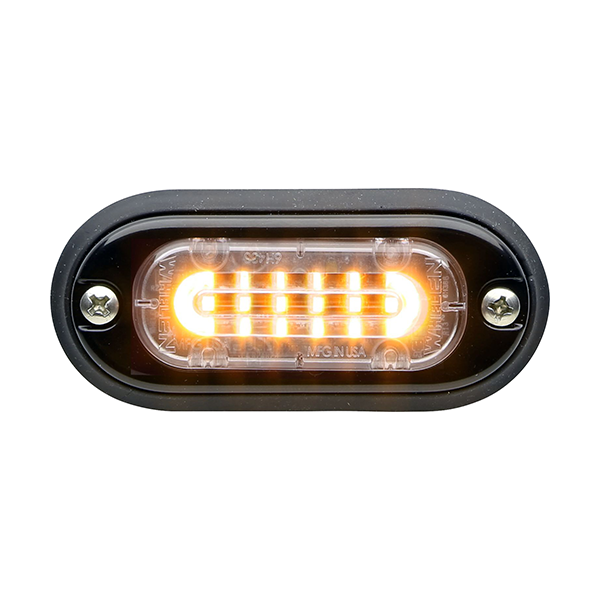

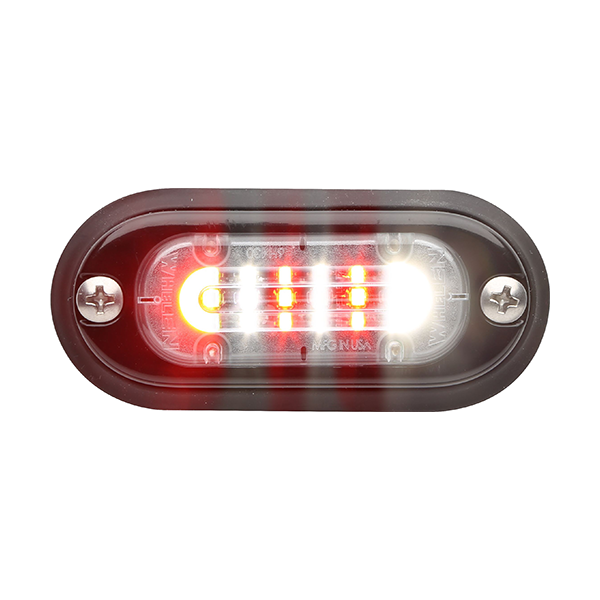

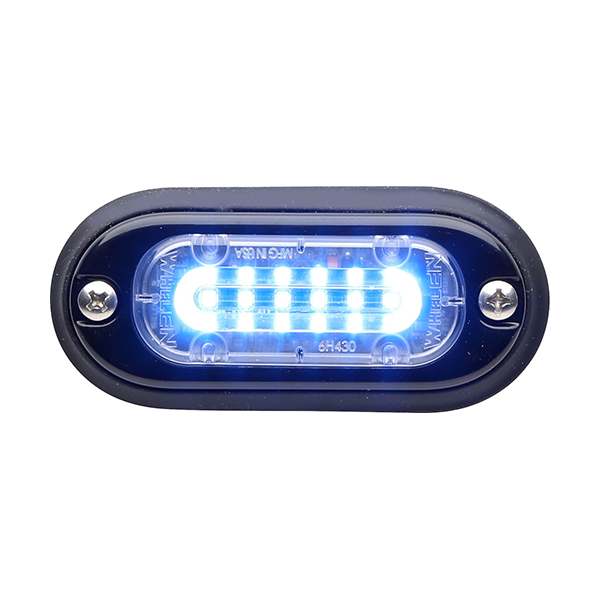

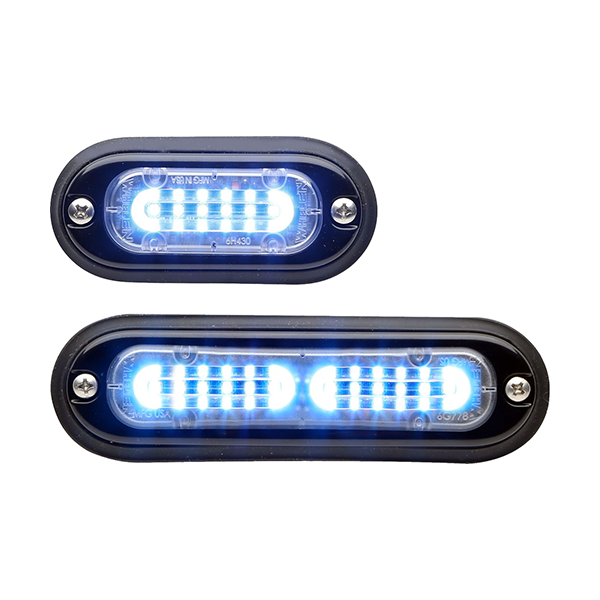

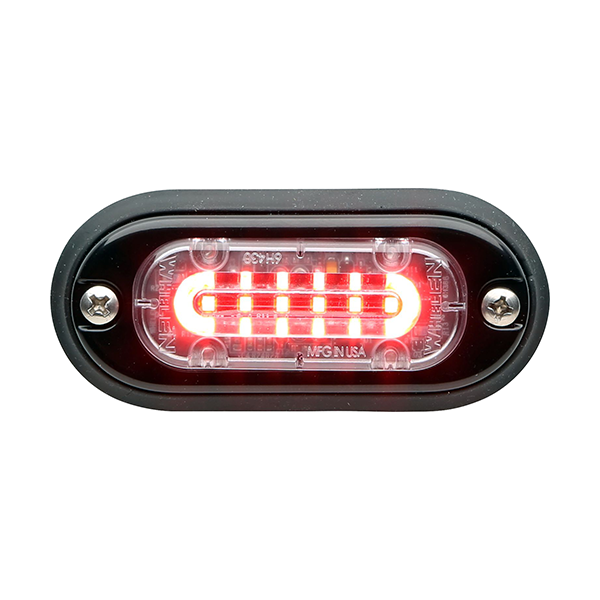

With a depth of only .5", the sleek ION Mini T-Series provides high performance warning or illumination in an extremely compact design.

Features

SAE Class 1 Certified
Linear Super-LED optics
25 Scan-Lock flash patterns
Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
Synchronize to other Whelen sync products
Easily surface mounts with two screws
Includes Black flange and a four wire 6" pigtail
Rated IP67 for dust and water resistance
12 VDC 0.4 amps (peak) / 0.16 amps (avg)

Size:

1.50" (3.81cm) H x .50" (1.27cm) D x 3.34" (8.48cm) L
Five year warranty
