Whelen 295SSA-296SDA Series

Features

• Meets California Title XIII requirements for sound output
• California Title XIII compliant tone set-up
• Includes a handheld controller or a full-function controller
• Short circuit protection
• Under/over voltage protection
• LED fault indicators for speaker and input voltage diagnostics
• Horn-ring transfer relay built-in
• Siren "in use" video recorder icon appears on video recording to confirm the siren is in use
• Siren disable (Park Kill) control input

Dimensions:

• 2-1/4" (57mm) H x 8-5/8" (219mm) W x 7-1/8" (180mm) D
• Two year warranty

295SSA Features:

• Single amplifier
• One 100 watt speaker
• 17 Scan-Lock siren tones

295SDA Features:

• Two independent siren amplifiers in one housing
• Each amplifier drives one 100 watt speaker
• 20 Scan-Lock siren tones
• Produces asynchronous tones, mimicking two vehicles for high-intensity auditory warning (when used with two speakers)
• Any two tones can be programmed to any siren tone switch

Full Function Controller

• 11 programmable power distribution switches (one three position slide switch and eight momentary switches)
• Three 20 amp relay controlled outputs with built-in fuses
• Eight 10 amp relay controlled outputs with built-in fuses
• Two wire Traffic Advisor control
• Programming cannot be activated by a user in the cab
• All switches can be programmed to activate any combination of the relay outputs
• Any light control switch can be programmed to activate any of the eight momentary switches
• Momentary switches can be programmed to be activated as a push-on/push-off, momentary, flashing, timed output, or TA control
• Copy siren/switch configuration to another unit with "cloning" feature

Dimensions:

• 3-1/2" (89mm) H x 6-7/8" (175mm) W x 1-1/4" (32mm) D

Handheld Controller

• Handheld light and siren controller with built-in microphone
• Includes Radio Repeat and Public Address
• Public Address overrides siren function
• Hands-free operation
• 12 programmable push-buttons
• Buttons feature LED backlighting for nighttime viewing
• Includes press on labels for customization
• Nine 10 amp relay controlled outputs with built-in fuses
• Windows based programming software for custom configuration
• 6' coiled cord microphone cable
• 20' interconnect cable

Dimensions:

• 5-5/16" (135mm) H x 2-1/4" (57mm) W x 1-1/8" (28mm) D

Models

• 295SSA1 - Single tone siren with full function control head

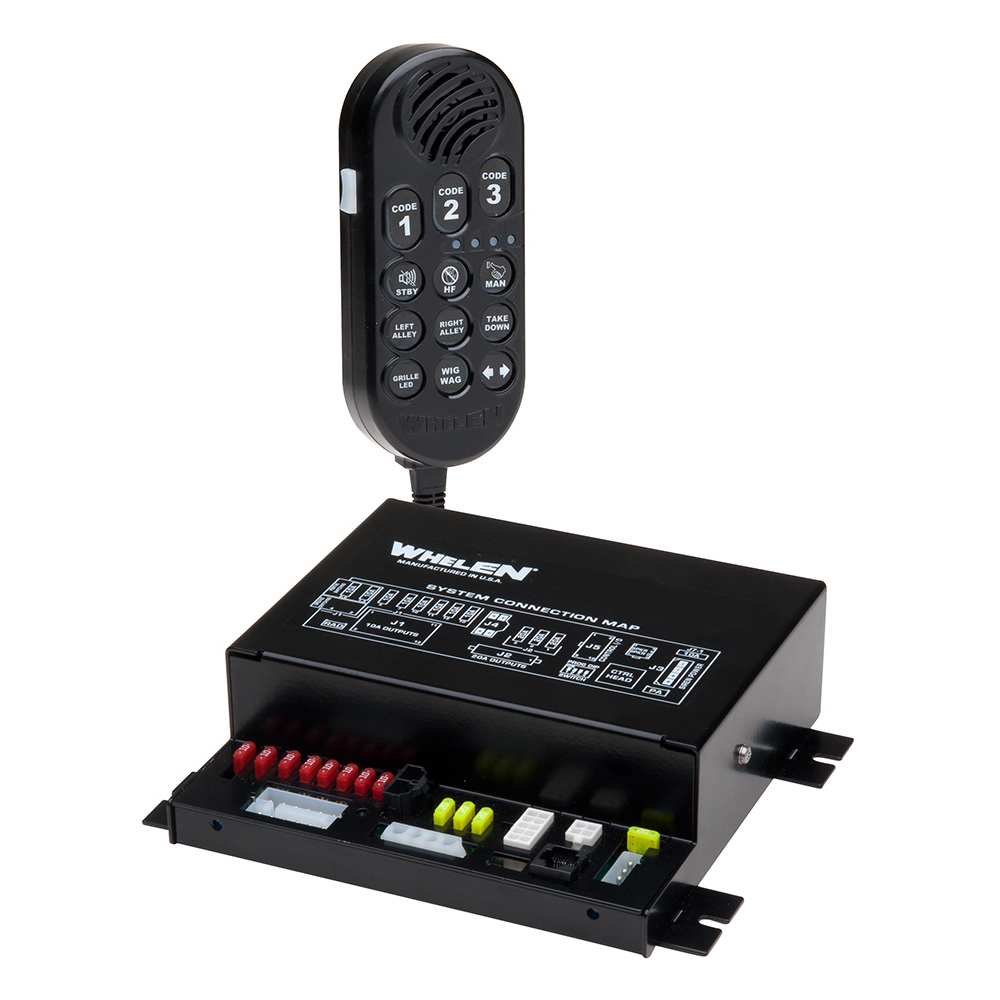

• 295SSA2 - Single tone siren with handheld control head

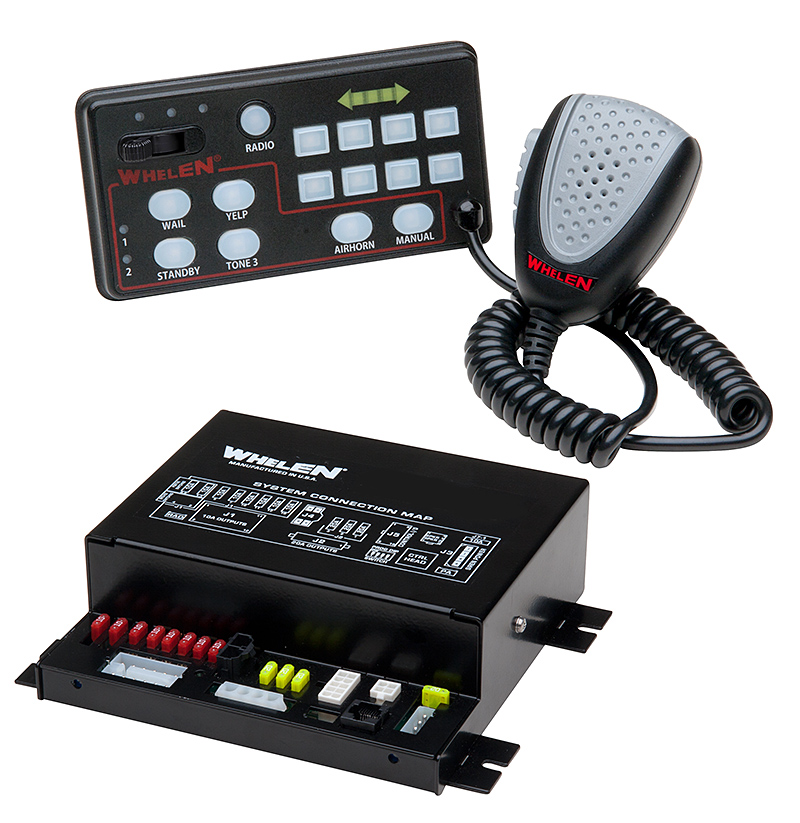

• 295SDA1 - Dual tone siren, for two 100 watt speakers, with full function control head
• 295SDA2 - Dual tone siren, for two 100 watt speakers, with handheld control head
