• SAE Class 1 Certified
• Medium profile, smooth polycarbonate dome
• Cast aluminum powder coated base
• Full reverse polarity protection
• 100% solid-state electronics
• Hard-coated domes minimize environmental damage from sand, sun, salt, and road chemicals
• Fully encapsulated for moisture, vibration, and corrosion resistance
• 25 total selectable flash patterns (including steady-burn)
• 75 SignalAlert™ flashes per minute
• Available in permanent, magnetic, or magnetic/suction mount models
• Rated for thousands of hours of use
• Virtually no RFI/EMI radiation
• 12 VDC, for 24 VDC models contact factory
• 12V – 1.5 Amp (peak), 0.6 Amp (average)
• 4-3/4” (121mm) H x 6-7/16” (164mm) Dia.
• Five year warranty

Models

Permanent Mount Models

• Combination mounting: 1” pipe/permanent
• Supplied with a 6” pigtail
• Synchronize with up to 8 Whelen beacons
• Photocell Hi/Low mode available, contact factory
• Hi/Low intensity control

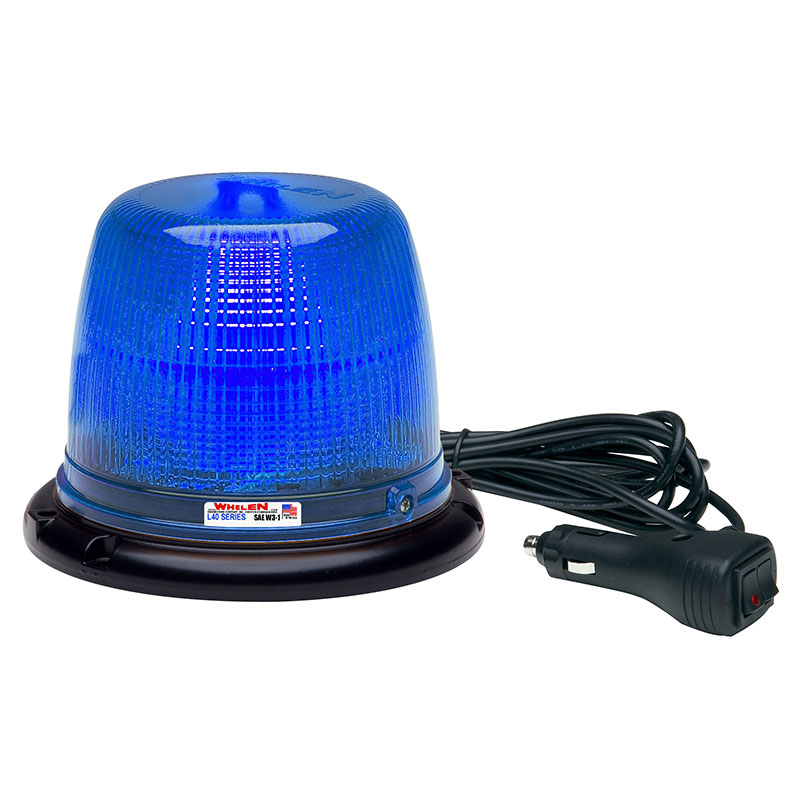

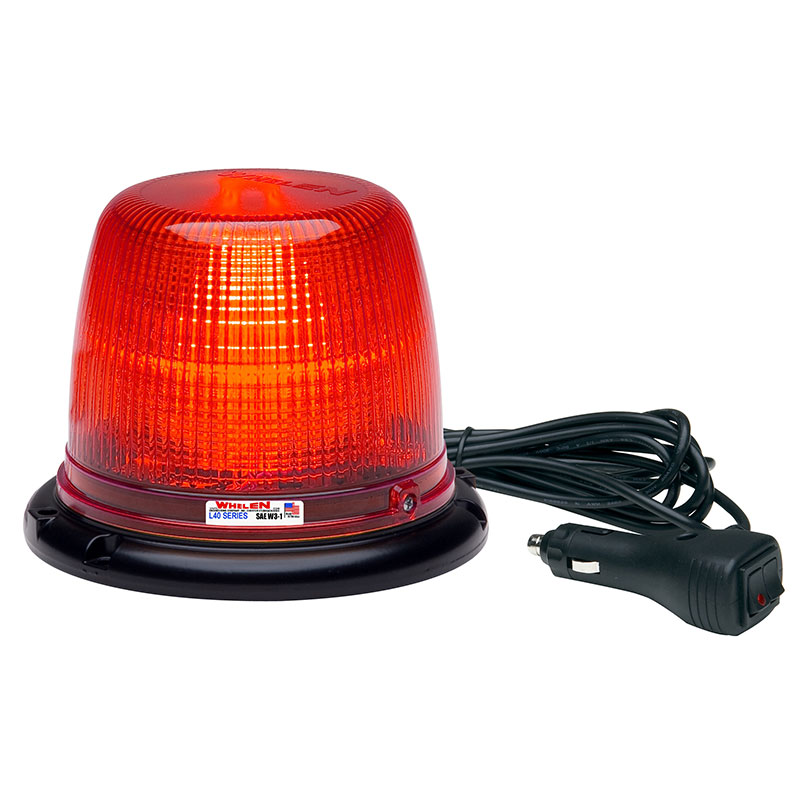

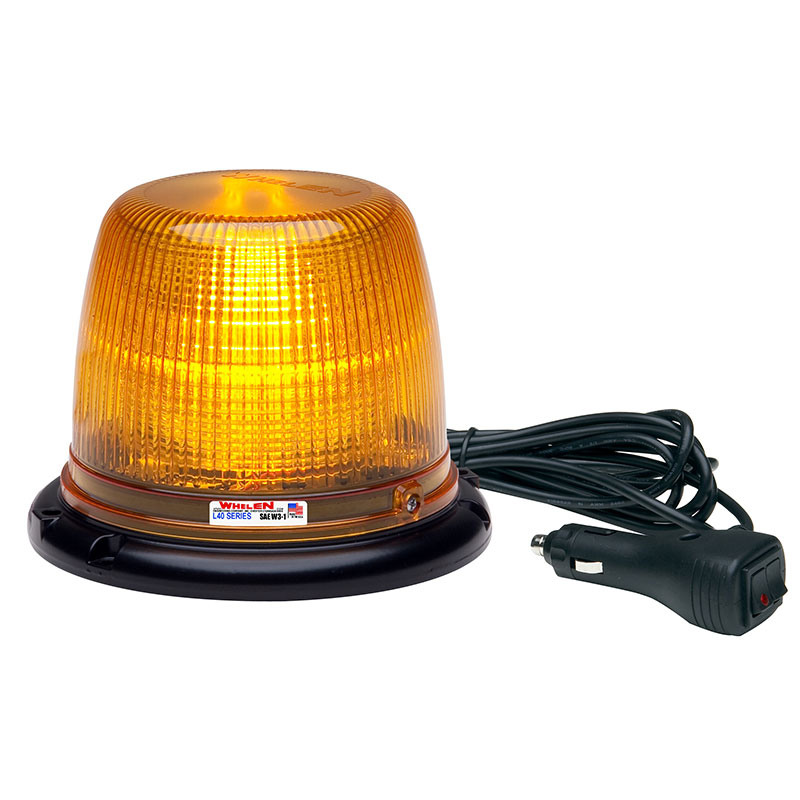

Magnetic & Magnetic/Suction Mount Model

• Magnetic and magnetic/suction mount models are supplied with a 10’ cord and cigar plug with built-in On/Off switch with LED “On” indicator and pattern control selection switch
