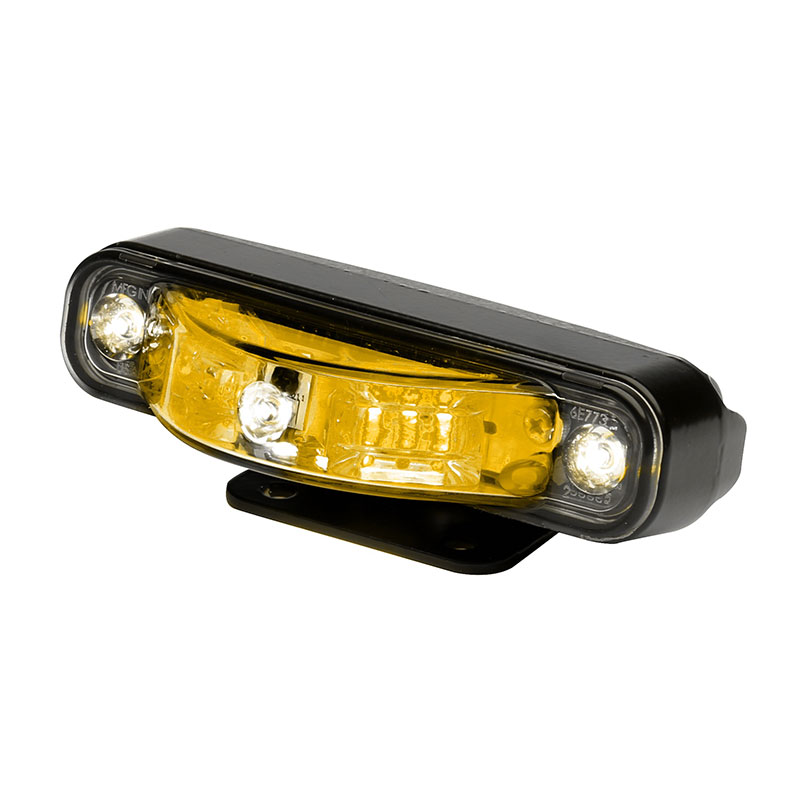

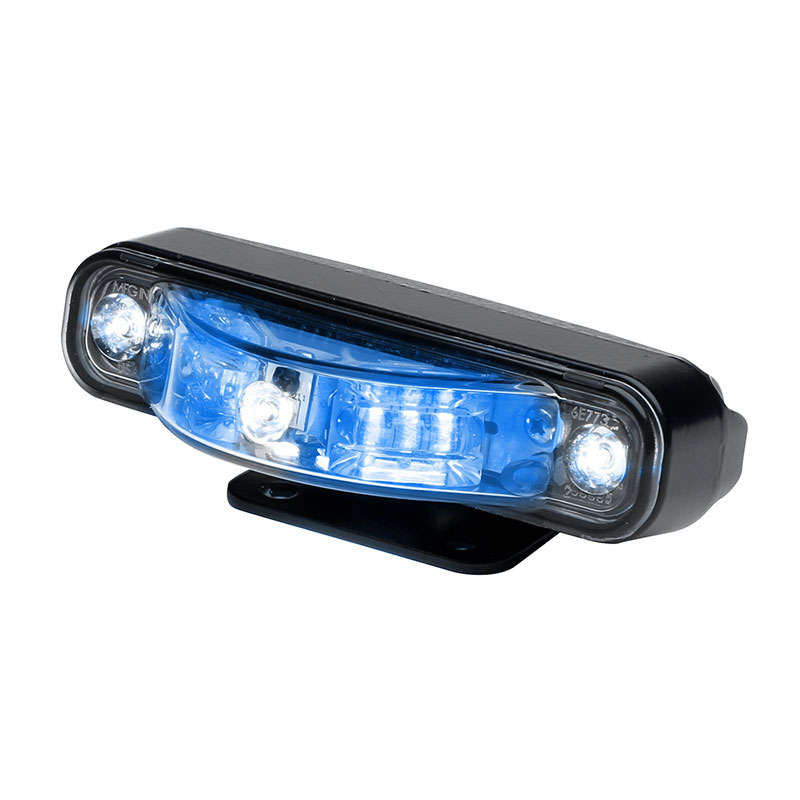

Whelen ION™ V-Series™ Lightheads

Super-LED® Lightheads

Product Description

Featuring Whelen’s innovative optic technology, V-Series Super-LED® lightheads are versatile and efficient. Utilizing multiple planes of light in one lighthead, models are available in a variety of sizes for use in numerous applications. Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals.

Download Product Brochure

Product Features

  • Available in surface or universal mount
  • Surface mount models include Black flange
  • Universal mount includes combination permanent/pedestal, clip, edge mounts, double-sided tape, with a Black housing
  • Warning segment has 25 Scan-Lock™ flash patterns
  • Six inch pigtail with sync wire allows up to eight lightheads to be synchronized together for the warning segment of the lighthead
  • SideKick™ and Mirror-Beam™ models include driver and passenger side housings
  • Go undercover with all new, SAE Class 1 Certified Smoked lenses
  • Combination model: Amp Draw @ 12 VDC, Warning: 0.765/A, Flood: 0.31/A, Puddle: 0.12/A
  • Single color warning model: Amp draw @ 12 VDC, Warning: 1.147/A
  • Size, Universal mount: 1” (25mm) H x 2-3/16” (56mm) D x 4-1/16” (104mm) L
  • Size, Surface mount: 1-11/16” (43mm) H x 2” (50mm) D x 5-15/16” (150mm) L

Warning Certified To

  • SAE J595
  • SAE J845
