Product Description

Whelen’s Vertex Series offers three different optical light output models to direct light anywhere it’s needed. These small Super-LED® lightheads install easily with a 1” hole and utilize an in-line lamp driver.

Download Product Brochure

Product Features

  • Available in single color or split color Amber, Blue, Red, and/or White
  • Go undercover with all new Smoked lenses
  • 25 Scan-Lock™ flash patterns
  • Synchronizable to other Whelen sync products
  • Lamp and in-line lamp driver are fully encapsulated for moisture and vibration resistance
  • Mounts vertically or horizontally via two screws

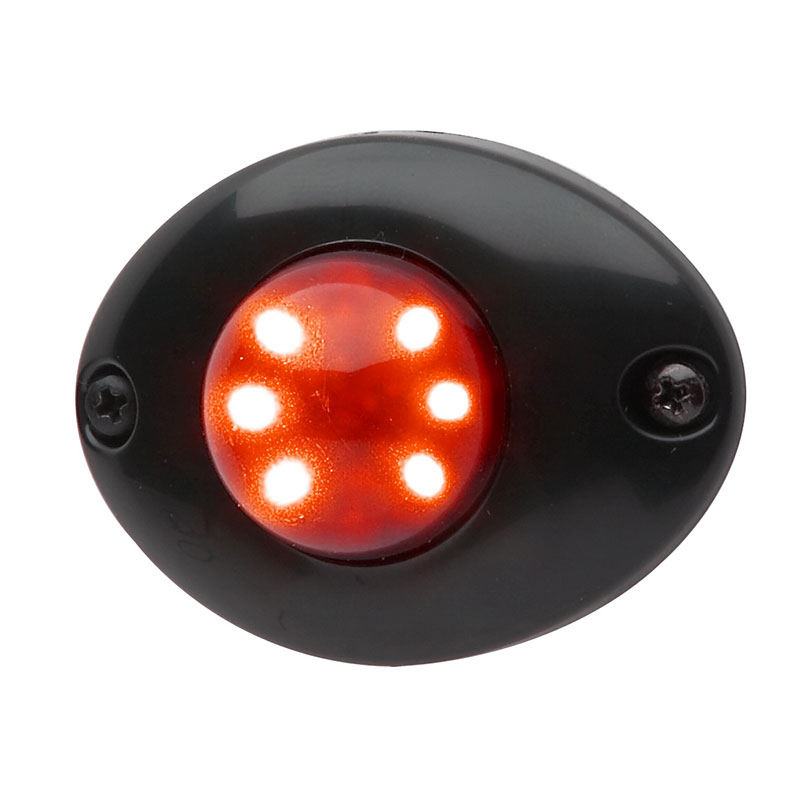

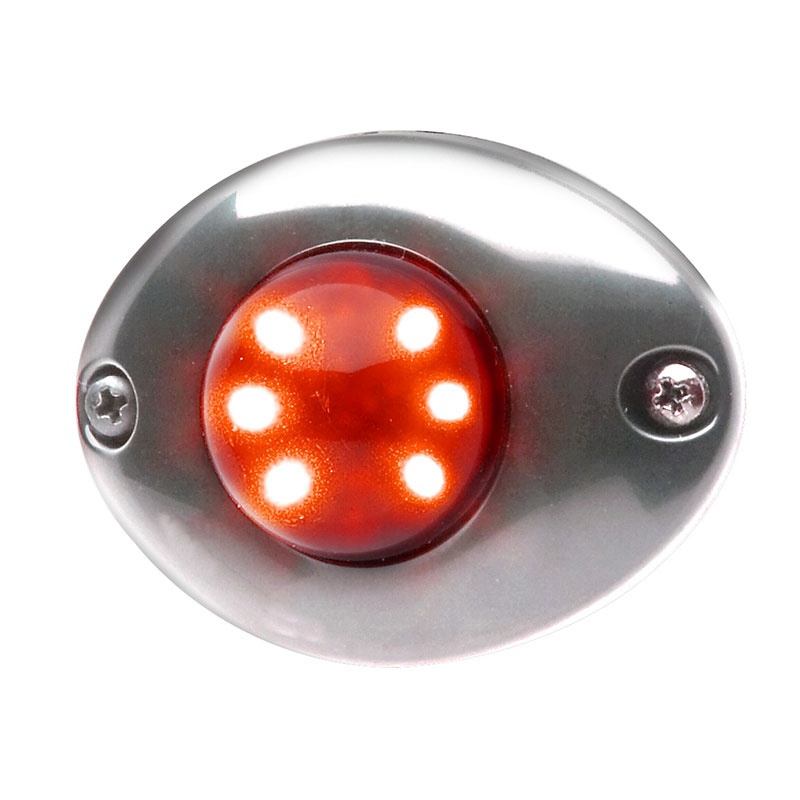

  • Optional surface mount flanges available in Black or Chrome for models VTX609 and VTXD609 allow for mounting virtually anywhere
  • Simple installation with no separate lamp drivers, flashers, ballast, or power supplies
  • 1” hole makes this LED module backwards compatible to HA238 and standard 1” Hide-A-Way strobe style lamps
  • Virtually no RFI/EMI noise emitted, meets SAE J1113-41 Class 5
  • 10-16 VDC

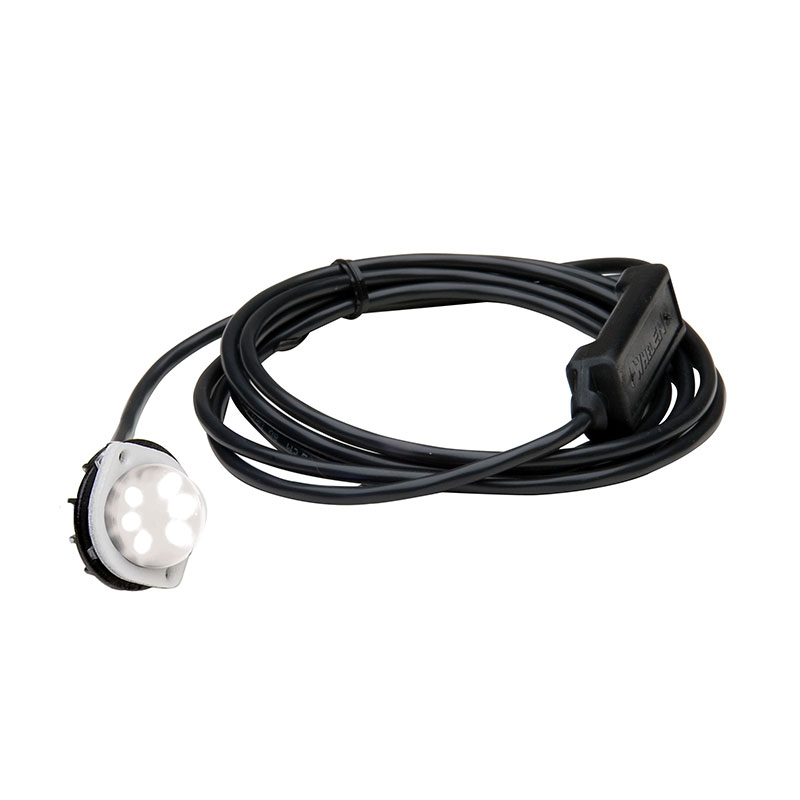

  • Includes a 9’ pre-wired and sealed 4-C/22 gauge cable with power, pattern, and synchronize wires
  • Five year warranty

VTX609/XTX609

  • Omni-directional lighthead
  • Produces light in a hemispheric pattern
  • Mounts internally within composite headlight and taillight assemblies

VTX3609

  • Side emitter lighthead
  • Produces light in a 360° side emitting pattern
  • Mounts internally within composite headlight and taillight assemblies

VTXD609/XTXD609

  • Directional lighthead
  • Produces light in an upward pattern
  • Includes side emitting reflector for use internally within composite headlight and taillight assemblies
