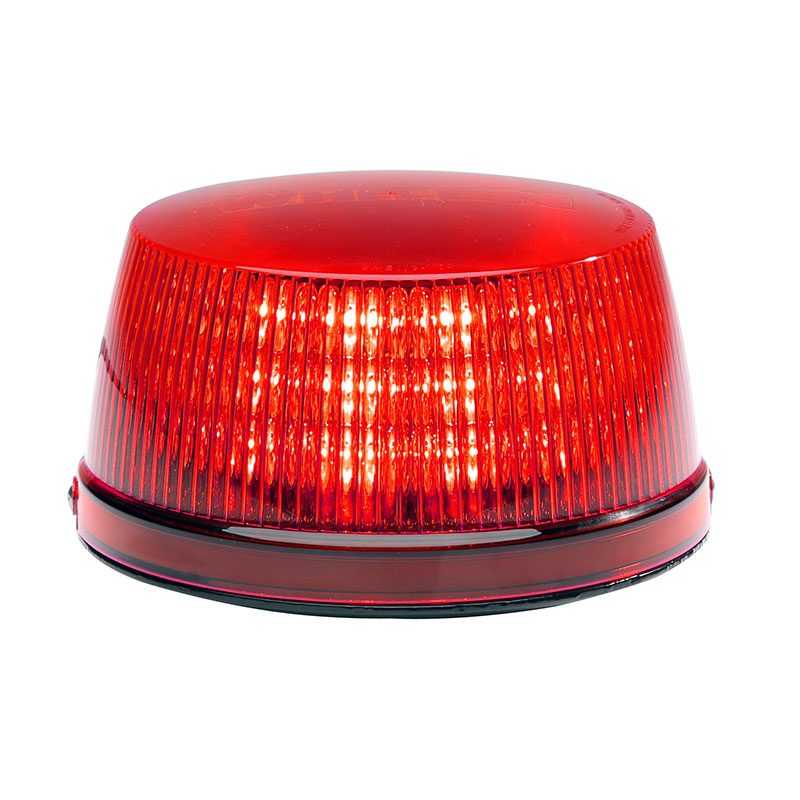

Whelen R316 Rota-Beam™

Super-LED® “Rotating” Beacon

Product Description

Whelen’s R316 Rota-Beam features solid-state “rotating” technology, simulating the appearance of a rotating beacon without any moving parts or motors for long-life reliability.

Download Product Brochure

Product Features

  • SAE Class 1 Certified
  • Low profile, smooth, self-cleaning polycarbonate dome
  • Clear or color outer dome
  • Powder-coated cast aluminum base
  • 100% solid-state electronics
  • Conformal coated electronics provide moisture and vibration resistance
  • Hard-coated domes minimize environmental damage from sand, sun, salt, and road chemicals
  • 32 Scan-Lock™ flash patterns with varying rotating flash rates
  • Available in permanent, magnetic, or magnetic/suction mount models
  • Permanent mount models are supplied with six input pigtails

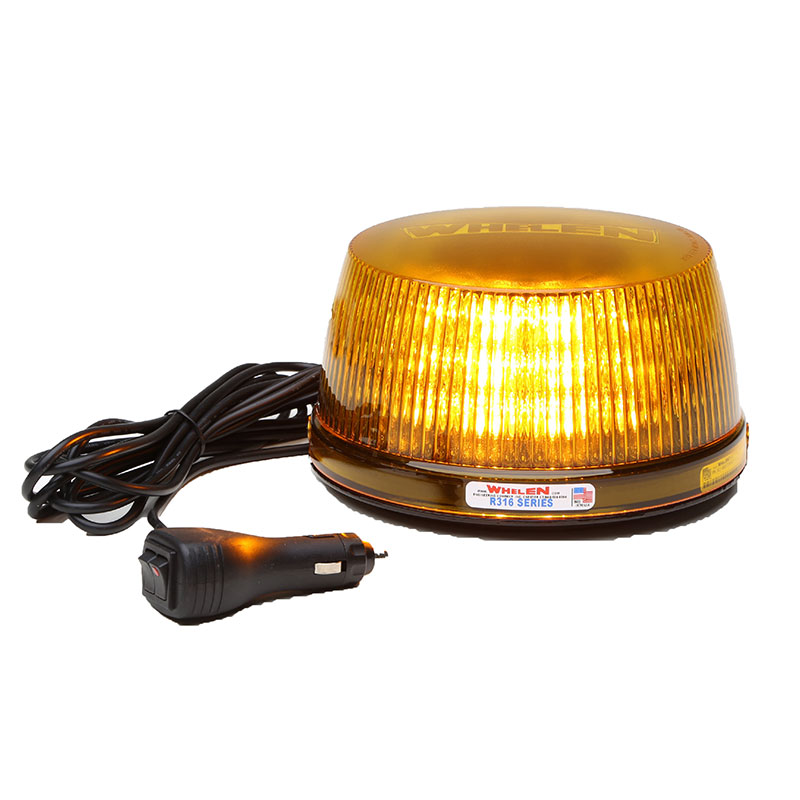

  • Magnet and magnetic/suction mount models are supplied with a ten foot straight cord and cigar plug with LED indicator On/Off switch and pattern control switch
  • Synchronizable to other Whelen sync products
  • Cruise light feature
  • Available in Amber, Blue, Red, and/or White
  • Solid and split (front/rear) colors
  • Optional Photocell for low power
  • 25 amps @ 12 VDC
  • 12 or 24 VDC versions available
  • Five year warranty
