Whelen Tracer Light Array

Tracer™ Series, Super-LED® Light Array

Product Description

Engineered to increase vehicle visibility, the Tracer utilizes Whelen’s Super-LED technology to provide high intensity warning and illumination. Sleek vehicle specific mounting brackets conform to vehicle rocker panels and the universal mounting bracket kit will mount a Tracer to a variety of applications. The durable clamshell design allows for easy reconfiguration and serviceability. Tracer is now enhanced with Traffic Advisor™ capabilities in 4-6 lamp versions and an all new external control module for ease of installation.

Download Product Brochure

Product Features

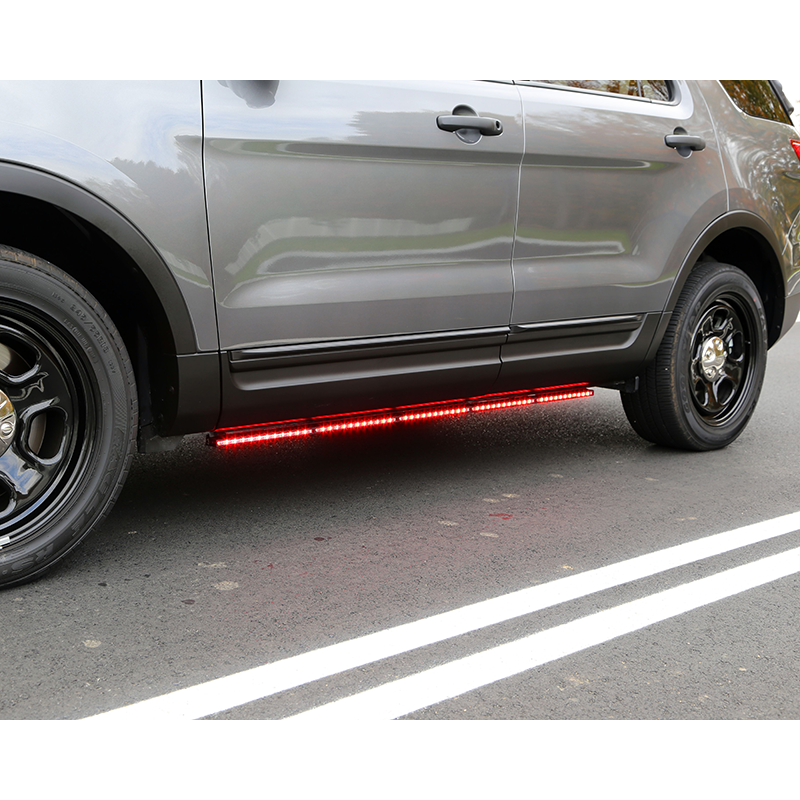

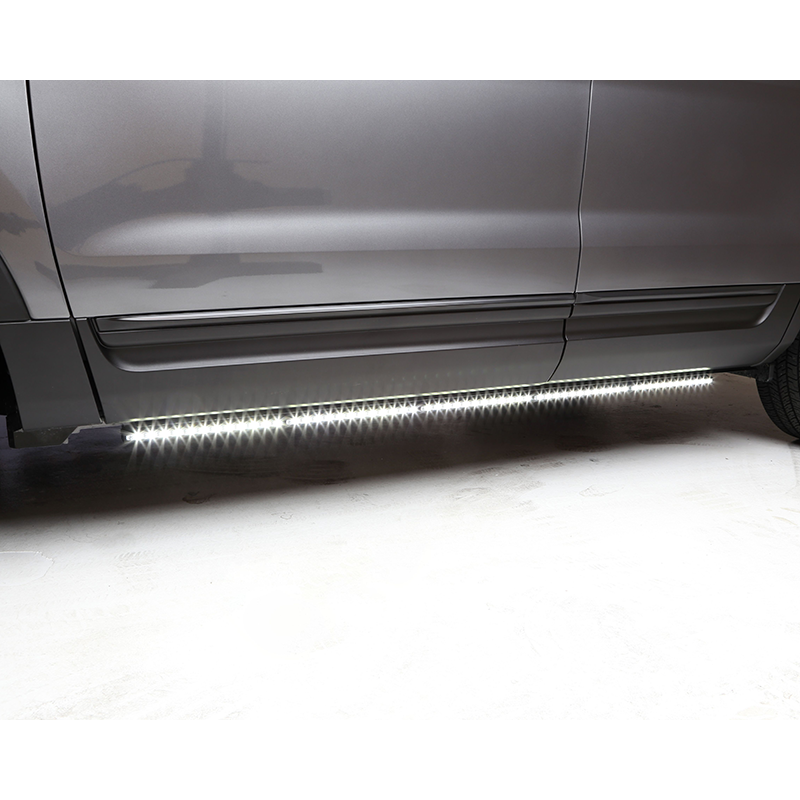

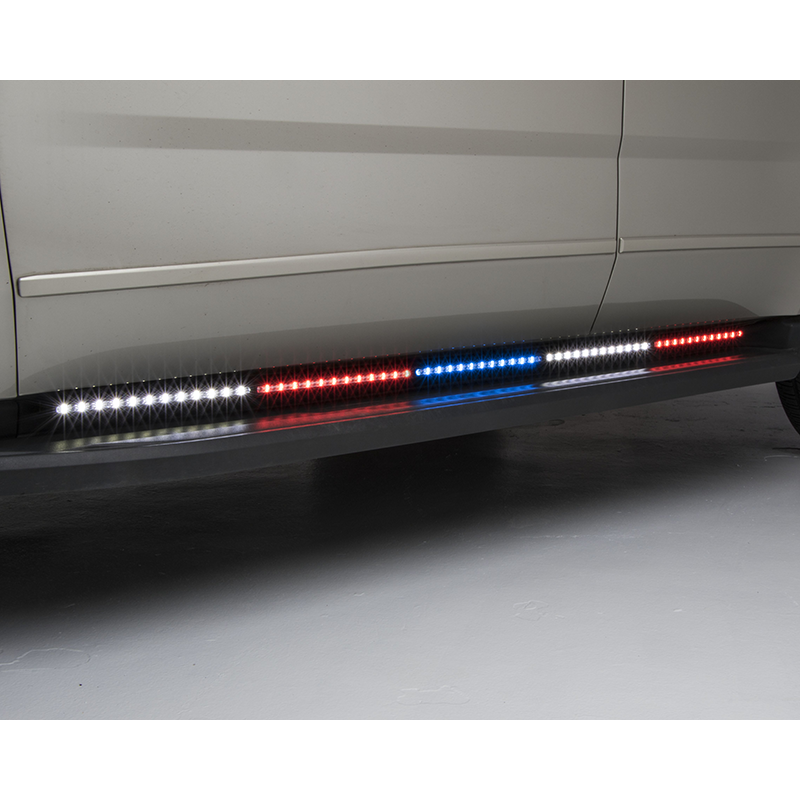

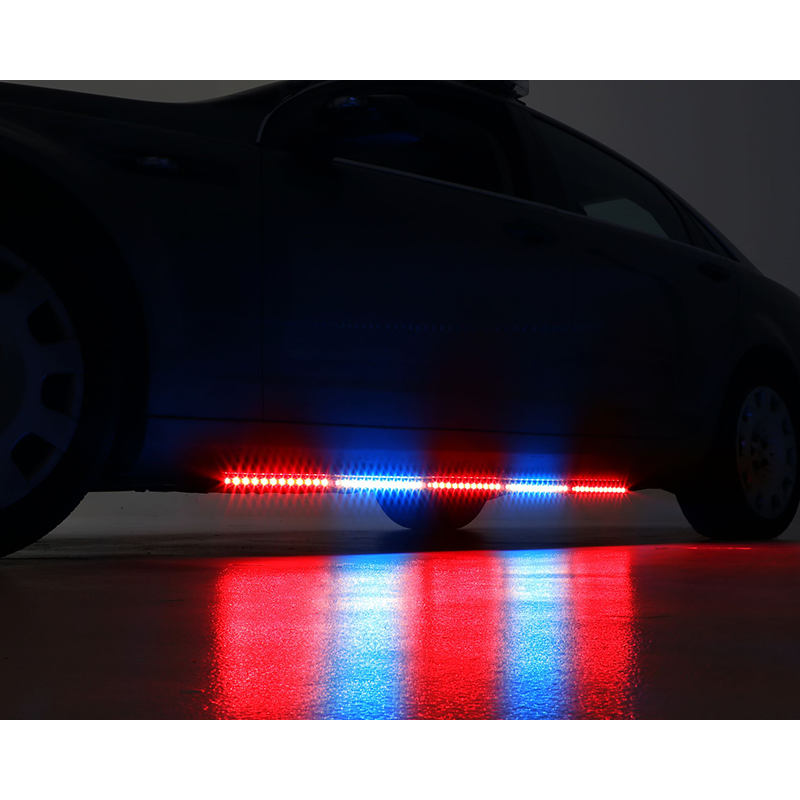

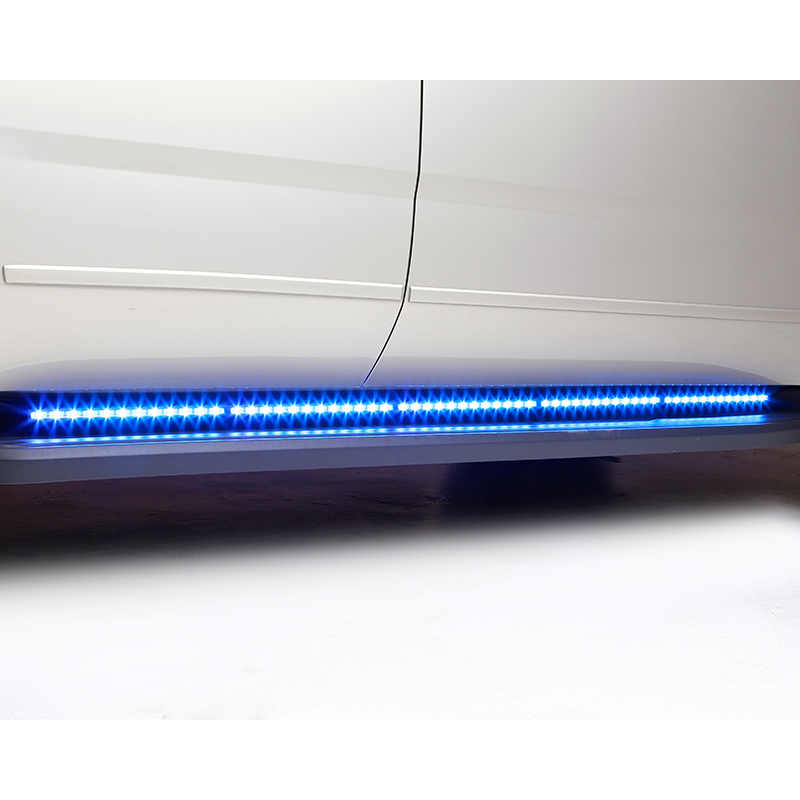

Sleek vehicle specific mounting brackets conform to vehicle rocker panels and the universal mounting bracket kit will mount Tracer to a variety of applications. The durable clamshell design allows for easy reconfiguration and serviceability.

Tracer is now enhanced with Traffic Advisor™ capabilities in 4-6 lamp versions and an all new external control module for ease of installation.

Specifications

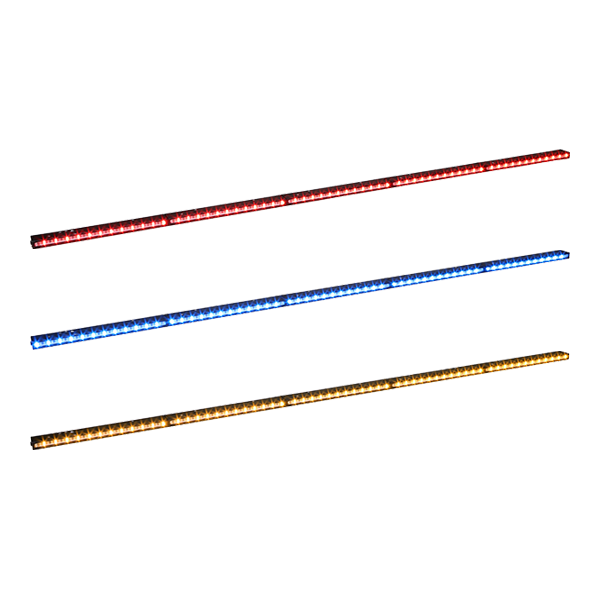

• Available in SOLO™ (single color), DUO™ (two color interleaved), or TRIO™ (three color interleaved) modules
• Lightheads are daisy-chained together in lengths from 1 to 6 modules using the provided extrusion
• 30 Scan-Lock™ flash patterns
• NEW Traffic Advisor included in 4-6 lamp versions
• DUO and TRIO models feature steady override, such as White steady-burn
• DUO and TRIO models can be synced to other Whelen sync products
• Cruise light control includes seven adjustable intensity levels
• Custom light configuration choices are achieved via the mode control wire
• Hard-coated lenses resist environmental damage from sand, sun, salt, and road chemicals
• Easily serviceable clamshell design
• Mounts easily via slide bolt with vehicle specific brackets, universal “L” brackets, or under lightbar brackets
• Includes 15’ cable
• NEW Encapsulated, water resistant control module for exterior or interior installation features two additional inputs for Traffic Advisor functions
• SAE Class 1 Certified
• IP67 rated for dust and water resistance
• 12 VDC
• 0.5 amps peak per module
• Size, single module: .75” (19mm) H x 1.75” (44.45mm) D x 12.5” (317.5mm) L
• Five year warranty
