Responder LP Series mini lightbars are available in Conical or Linear-LED modules and feature an aluminum or polycarbonate base for use in a variety of applications.
Features
SAE Class 1 Certified
Six Super-LED modules

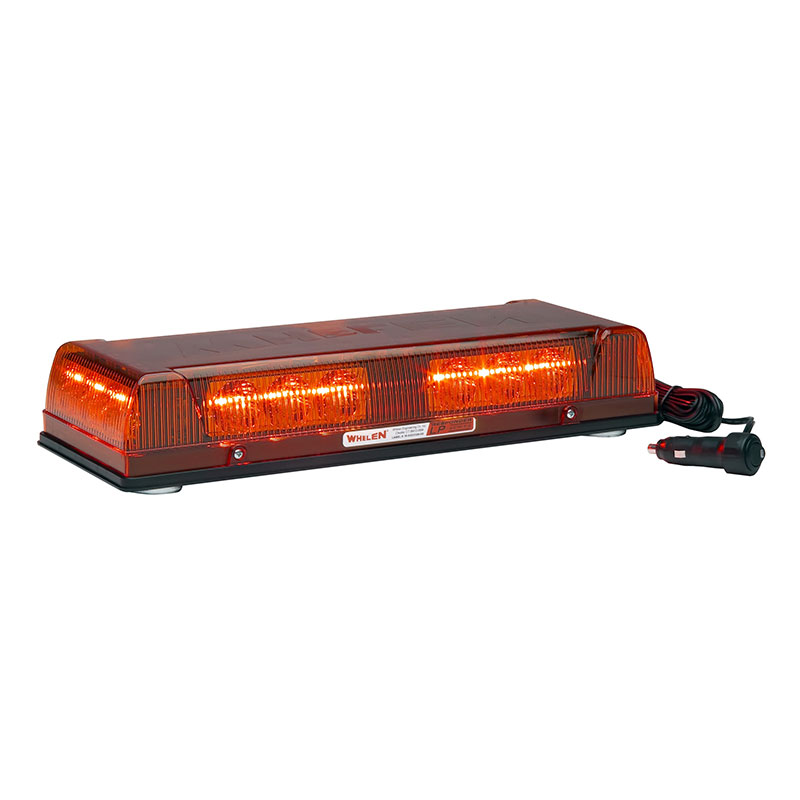

R1LP Series features Conical modules

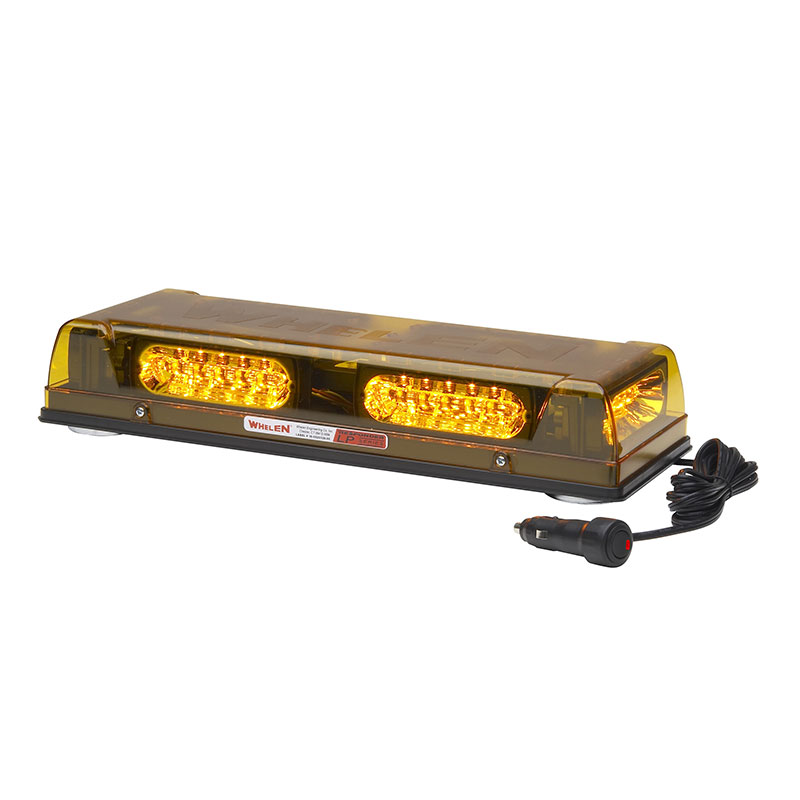

R2LP Series features Linear-LED modules
Available in magnetic, magnetic/suction, or permanent mount with a polycarbonate or aluminum base
Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals

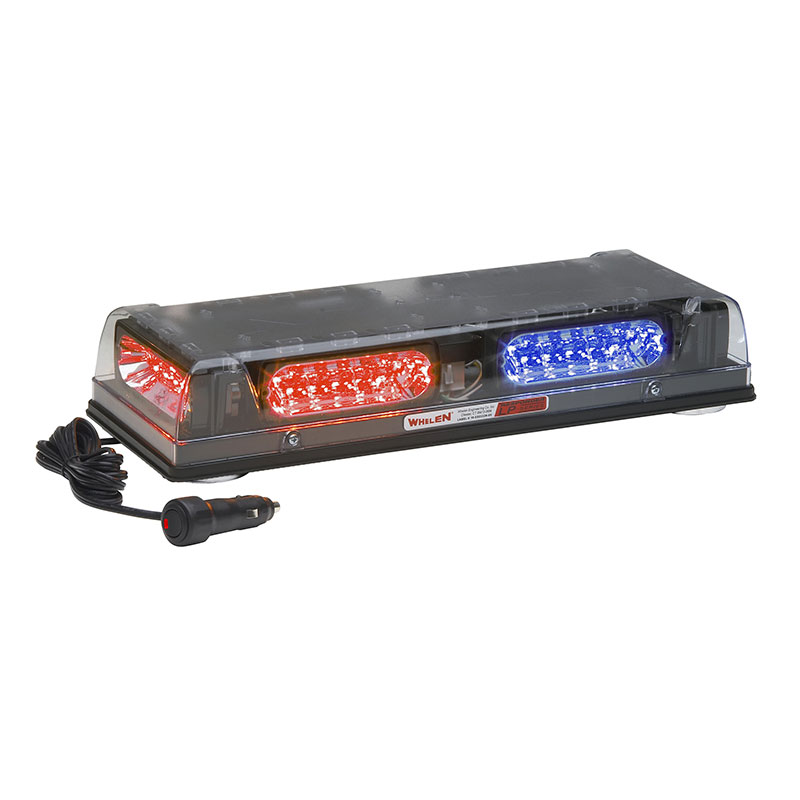

Model RDLPPAB features DUO technology, utilizing different color LEDs in the same module allowing for individual control of each color
Responder LP Series mini lightbars are available in Conical or Linear-LED modules and feature an aluminum or polycarbonate base for use in a variety of applications
46 Scan-Lock flash patterns, including 4 simulated rotating patterns
ActionScan is the default flash pattern on all mount versions
Color outer domes standard on single color models
Magnetic and magnetic/suction mount models include 10' straight cord with dual switch cigar plug with pattern selection
Permanent mount models include 6" pigtail
12 VDC
R1LP Amp Draw:
3.0 (peak), 1.2 (average)
R2LP Amp Draw:
6.0 (peak), 2.4 (average)
Size (Aluminum base):
3-1/4" (83mm) H x 6-5/16" (160mm) D x 17" (432mm) L
Size (Polycarbonate base):
2-7/8" (74mm) H x 6-5/16" (160mm) D x 17" (432mm) L
